G3NA

Relays

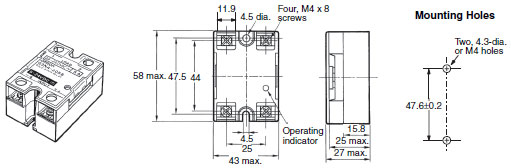

G3NA-205B, G3NA-210B, G3NA-220B, G3NA-410B, G3NA-420B

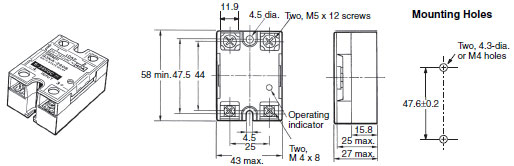

G3NA-240B, G3NA-440B

G3NA-D210B

Note:The load can be connected to either the positive or negative side.

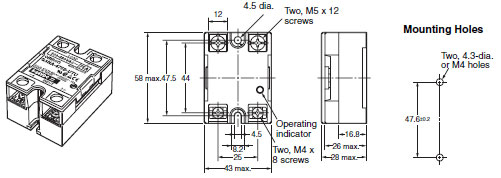

G3NA-275B-UTU, G3NA-475B-UTU, G3NA-290B-UTU, G3NA-490B-UTU

Options (Order Separately)

One-touch Mounting Plate

The One-touch Mounting Plate is used to mount the GN3A to a DIN Track.

R99-12 FOR G3NA (for the G3NA and G3NE)

Mounting Bracket

R99-11 (for the G3NA-240B, G3NA-440B)

Use Mounting Bracket R99-11 so that the G3NA-240B/-440B can be mounted with the same pitch as that of the G3N-240B.

Heat Sinks

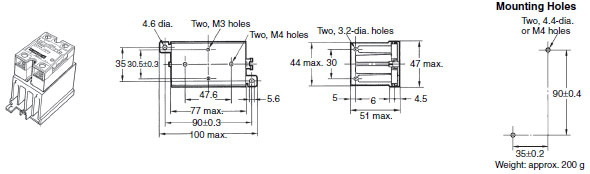

Y92B-N50 Heat Sink (for the G3NA-205B, G3NA-210B, G3NA-D210B, G3NA-410B, G3NE-210T(L))

For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs.Refer to Datasheet.).
The orientation indicated by the external dimensions is not the correct mounting rientation. When opening mounting holes, refer to the mounting hole dimensions.

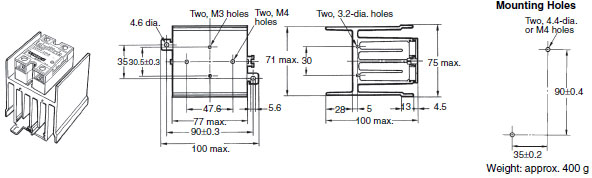

Y92B-N100 Heat Sink (for the G3NA-220B, G3NA-420B, G3NE-220T(L))

For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs.Refer to Datasheet.).
The orientation indicated by the external dimensions is not the correct mounting orientation. When opening mounting holes, refer to the mounting hole dimensions.

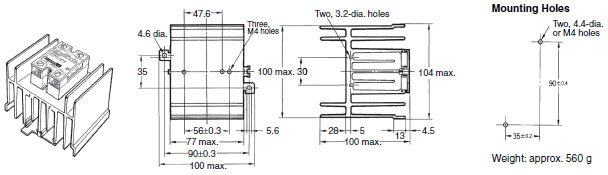

Y92B-N150 Heat Sink (for the G3NA-240B, G3NA-440B)

For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs.Refer to Datasheet.).
The orientation indicated by the external dimensions is not the correct mounting orientation. When opening mounting holes, refer to the mounting hole dimensions.

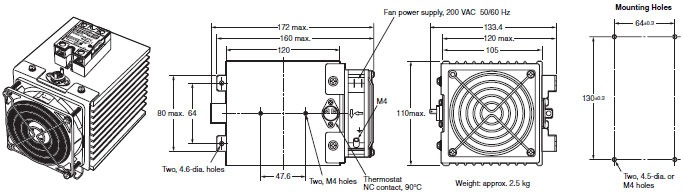

Y92B-P250NF Heat Sink (for the G3NA-275B-UTU, G3NA-475B-UTU, G3NA-290B-UTU, G3NA-490B-UTU)

The orientation indicated by the external dimensions is not the correct mounting orientation. When opening mounting holes, refer to the mounting hole dimensions.
Observe the precautions given in Mounting Method under Precautions for Correct Use.Refer to Datasheet.

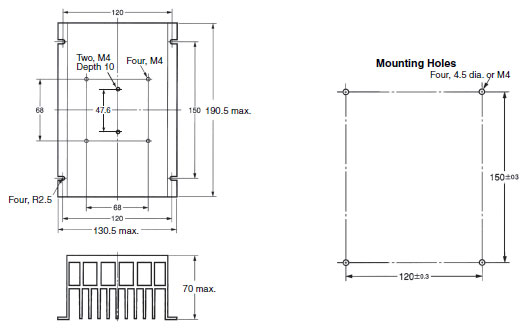

Y92B-P250

Y92B-A100 Heat Sink
(for the G3NA-205B,
G3NA-210B,
G3NA-220B,
G3NA-410B,
G3NA-420B,
G3NA-D210B)

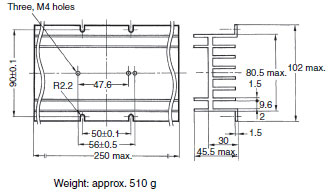

Y92B-A250 Heat Sink
(for the G3NA-440B)

Mounting Holes
Y92B-A100
Y92B-A150
Y92B-A250

For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs.Refer to Datasheet.).
The orientation indicated by the external dimensions is not the correct mounting orientation. When opening mounting holes, refer to the mounting hole dimensions.
