SitemapSwitch Mode Power Supply (30/50/75-W Models)
S82J
Data Sheet (3233KB)
Quick links to 'S82J' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
S82J Pick up
Note:Open-frame type and covered type have the same dimensions.
Front-mounting Bracket Models

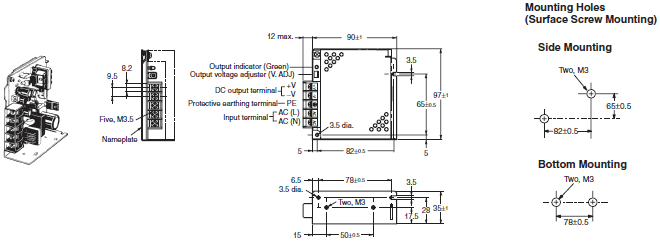

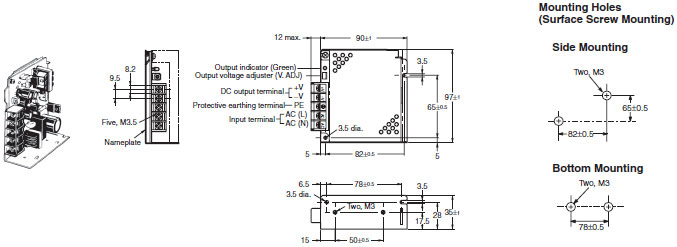

S82J-010[][][] (10 W)
![S82J-010[][][] (10 W)_Dim](img/s82j_dm_1.gif)

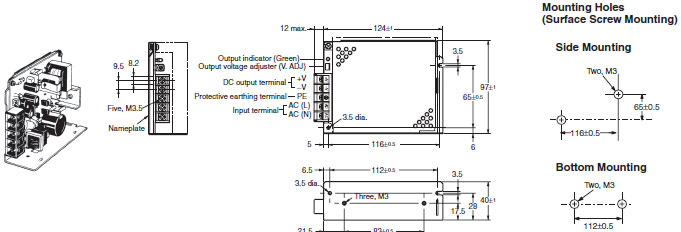

S82J-025[][][] (25 W)
![S82J-025[][][] (25 W)_Dim](img/s82j_dm_2.gif)

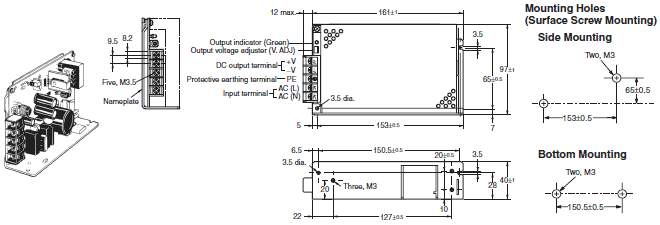

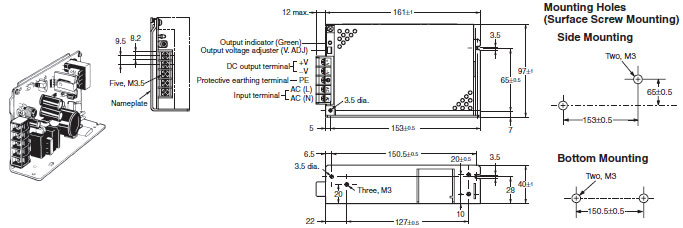

S82J-050[][][] (50 W)
![S82J-050[][][] (50 W)_Dim](img/s82j_dm_3.gif)

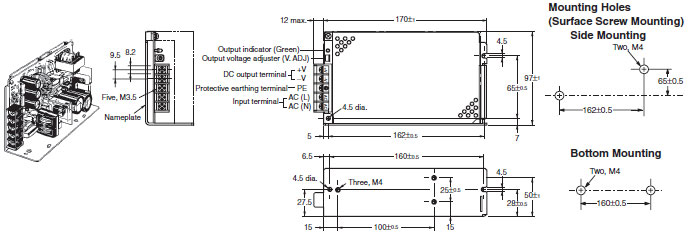

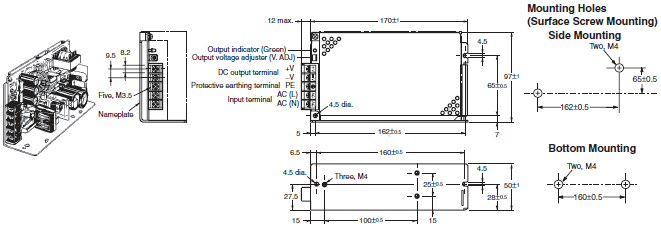

S82J-10024[]
(100 W, 24-V Output)
![S82J-10024[]_Dim](img/s82j_dm_4.gif)

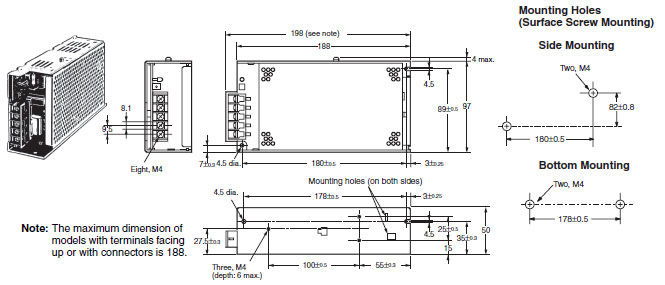

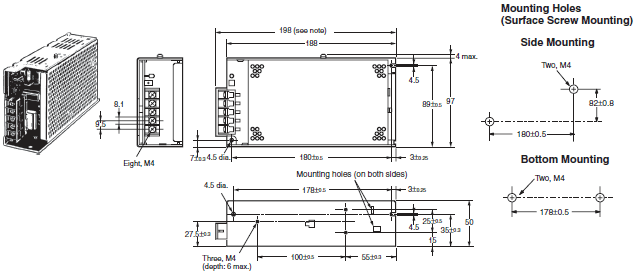

S82J-100[][][]
(100 W, 5-/12-/15-V Output)
S82J-15024[] (150 W)
![S82J-100[][][]_Dim](img/s82j_dm_5.gif)

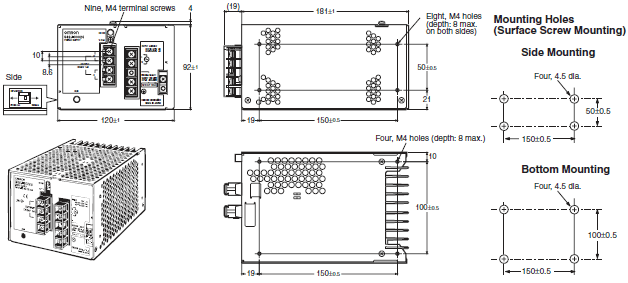

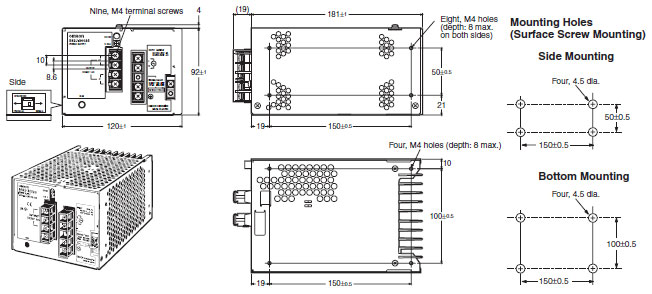

S82J-30024[] (300 W)
![S82J-30024[] (300 W)_Dim](img/s82j_dm_6.gif)

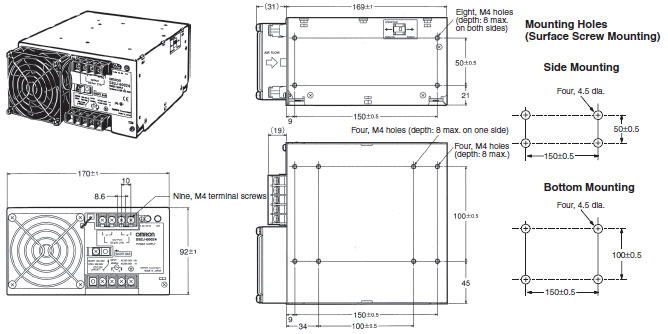

S82J-60024[] (600 W)
![S82J-60024[] (600 W)_Dim](img/s82j_dm_7.gif)

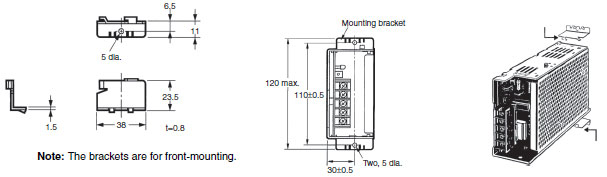

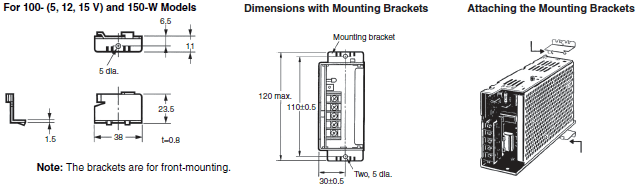

Dimensions with Mounting Brackets
Note:Panel mounting screw are not supplied.

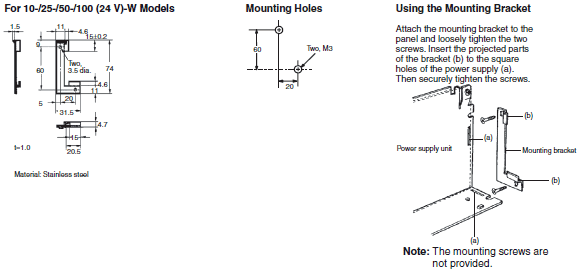

Front-mounting Bracket (Supplied)

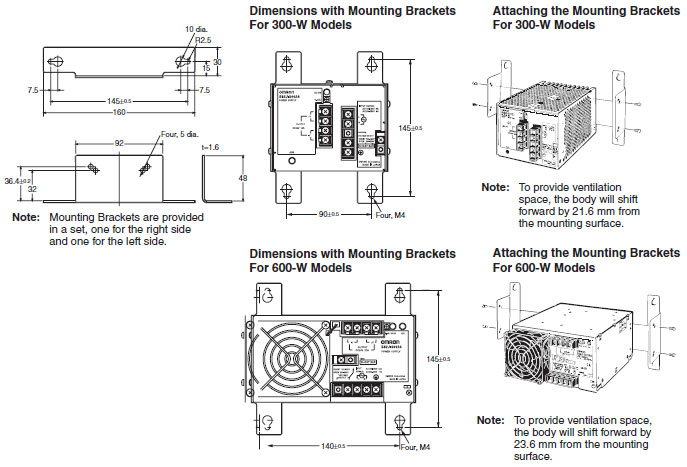

300-W and 600-W Models
Note:A mounting bracket is included with the S82J-30024 and S82J-60024, but not with the S82J-30024N and S82J-60024N.
DIN Rail Mounting Bracket Models
Note:The open-frame type and connected type have the same dimensions.

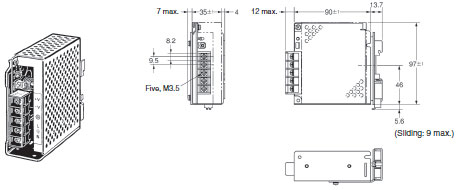

S82J-010[][][]D (10 W)
![S82J-010[][][]D (10 W)_Dim](img/s82j_dm_11.gif)

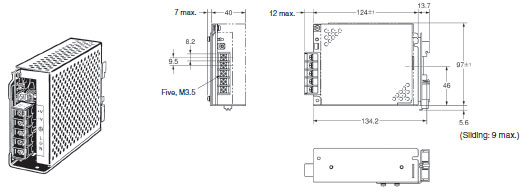

S82J-025[][][]D (25 W)
![S82J-025[][][]D (25 W)_Dim](img/s82j_dm_12.gif)

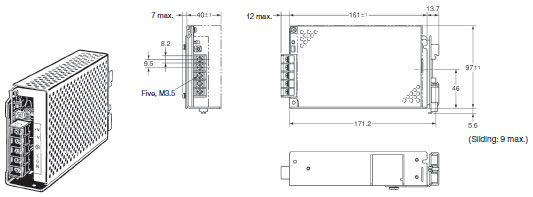

S82J-050[][][]D (50 W)
![S82J-050[][][]D (50 W)_Dim](img/s82j_dm_13.gif)

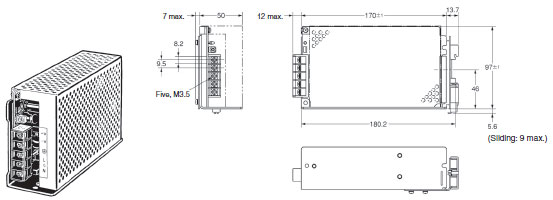

S82J-10024[]D
(100 W, 24-V Output)
![S82J-10024[]D_Dim](img/s82j_dm_14.gif)

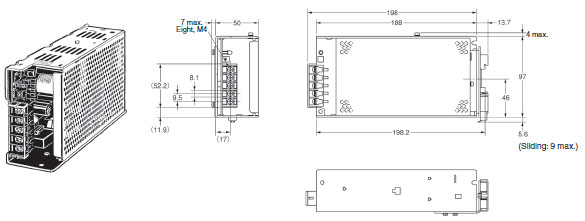

S82J-100[][][]D (100 W, 5-/12-/15-V Output)
S82J-15024[]D (150 W)
![S82J-100[][][]D _Dim](img/s82j_dm_15.gif)

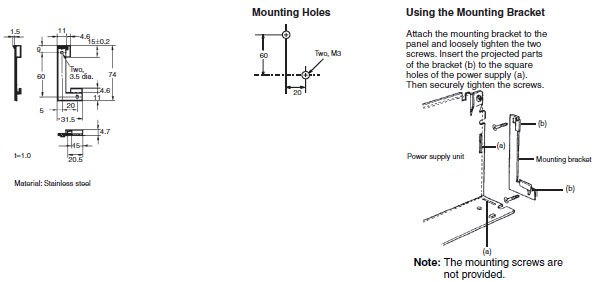

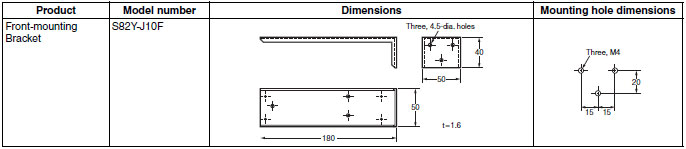

Front-mounting Bracket for S82J-10024A/-10024D Power Supply (Order Separately)
Note:This Front-mounting Bracket cannot be used with S82J 100-W (5, 12, or 15-V) or 150-W models.
Caution: All units are in millimeters unless otherwise indicated.
