SitemapBuilt-in Power Supply Photoelectric Sensor
E3JM / E3JK
Data Sheet (887KB)
Quick links to 'E3JM / E3JK' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
E3JM / E3JK Pick up
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Sensors

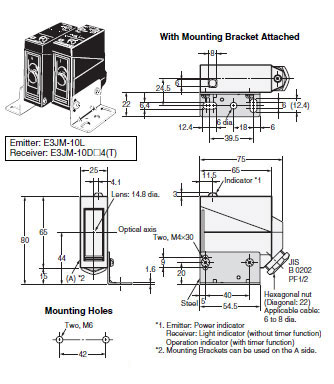

E3JM-10[]4(T)-N
![E3JM-10[]4(T)-N_Dim](img/421_dm_1.gif)
Note:The operating mode switch and timer mode switch are located inside the cover.

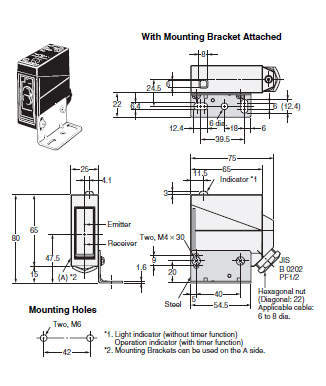

E3JM-R4[]4(T)
E3JM-DS70[]4(T)
![E3JM-R4[]4(T)_Dim](img/421_dm_2.gif)
Note:The operating mode switch, timer mode switch, and sensitivity adjuster (sensitivity adjuster: E3JM-DS70@4(T) only) are located inside the cover.

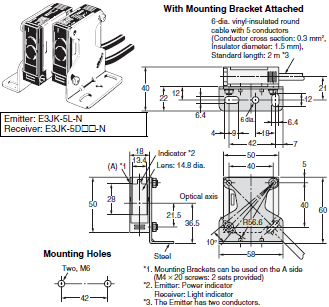

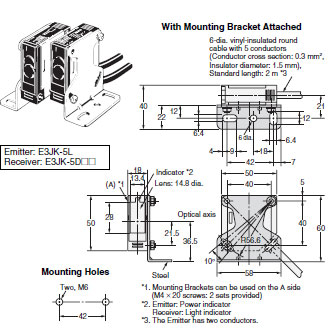

E3JK-5[][]-N
![E3JK-5[][]-N_Dim](img/421_dm_3.gif)

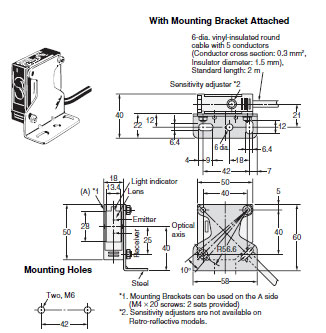

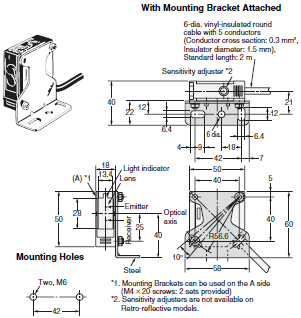

E3JK-R2[][]
E3JK-R4[][]
E3JK-DS30[][]
![E3JK-R2[][]_Dim](img/421_dm_4.gif)
Accessories (Order separately)
Seal-type Long Slit (For E3JM/E3JK)
E39-S39
Caution: All units are in millimeters unless otherwise indicated.
