E3Z

The New Standard for Compact, Long-range Photoelectric Sensors Conserves Energy and Natural Resources, One Million Sold Yearly

Quick links to 'E3Z' page in your country / territory.

Get more support via Products links, such as manuals and CAD files.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

Through-beam
Pre-wired Models

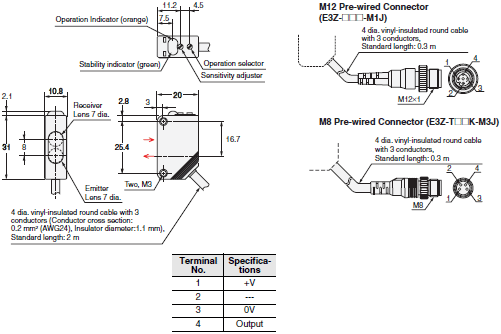

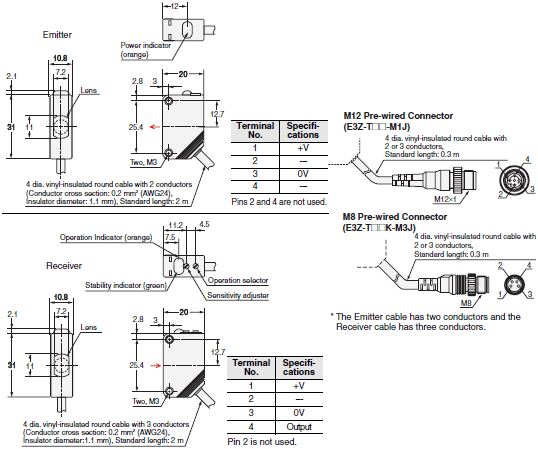

E3Z-T61(K), E3Z-T81(K)
E3Z-T61A, E3Z-T81A
E3Z-T62(-G0), E3Z-T82(-G0)

Through-beam
Connector Models

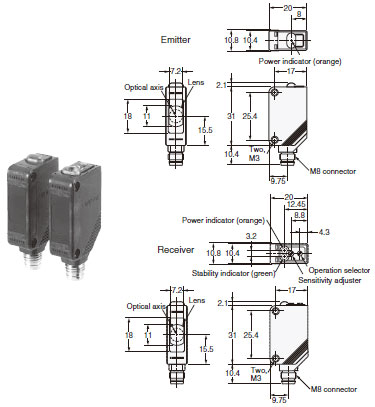

E3Z-T66, E3Z-T86
E3Z-T66A, E3Z-T86A
E3Z-T67(-G0), E3Z-T87(-G0)

Retro-reflective Models
Pre-wired Models

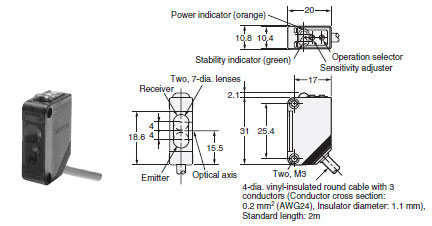

E3Z-R61(K), E3Z-R81(K)
E3Z-D61(K), E3Z-D81(K)
E3Z-D62(K), E3Z-D82(K)
E3Z-L61, E3Z-L81

Retro-reflective Models
Connector Models

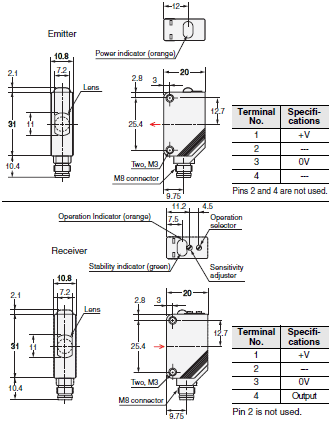

E3Z-R66, E3Z-R86
E3Z-D66, E3Z-D86
E3Z-D67, E3Z-D87
E3Z-L66, E3Z-L86

Note:The lens for the E3Z-D[]1/D[]6/L[][] is red. The lens for the E3Z-D[]2/D[]7 is black.

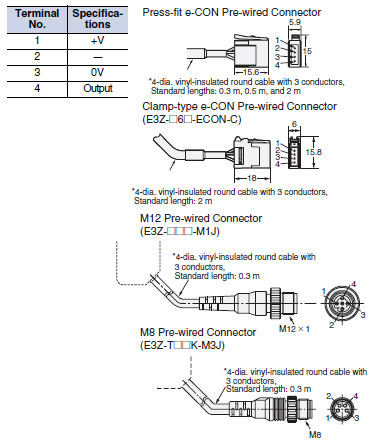

e-CON Connector Configurations

Accessories (Order Separately)

Slits

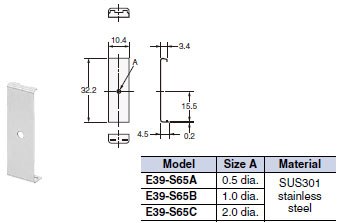

E39-S65A, E39-S65B, E39-S65C

Slits

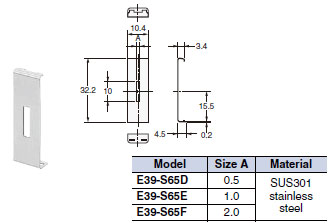

E39-S65D, E39-S65E, E39-S65F

Slits
E39-L44

Slits
E39-L104

Caution: All units are in millimeters unless otherwise indicated.
