SitemapSafety Light Curtain/Multi-beam Safety Sensor
F3SN-A / F3SN-B / F3SH-A
Two Forms of Safety from OMRON: Safety Light Curtains and Multibeam Safety Sensors
Data Sheet (3759KB)
Quick links to 'F3SN-A / F3SN-B / F3SH-A' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
F3SN-A / F3SN-B / F3SH-A Pick up
Two Forms of Safety from OMRON:
Safety Light Curtains and Multibeam Safety Sensors
Safety Light Curtains for Finger Protection
F3SN-A[][][][]P14
Operating range: 7 m
Smallest detectable object: 14 mm dia. (beam gap: 9 mm)
Protective height: 189 to 1,125 mm
Safety Light Curtains for Hand Protection
F3SN-A[][][][]P25
F3SN-B[][][][]P25
Operating range: 10 m
Smallest detectable object: 25 mm dia. (beam gap:15 mm)
Protective height: 217 to 1,822 mm
Presence Detection in Danger Zones
(Horizontal Installation)
F3SN-A[][][][]P40/P70
F3SN-B[][][][]P40/P70
Operating range: 10 m
Smallest detectable object: 40 mm dia. (beam gap: 30 mm) or 70 mm dia. (beam gap: 60 mm)
Protective height:
F3SN-A: 217 to 1,822 mm
F3SN-B: 217 to 1,777 mm
Multi-beam Safety Sensor for Body Protection
F3SH-A09P03
Operating range: 10 m
Number of beams: 4 (beam gap: 300 mm)
A New Concept to Meet User Needs

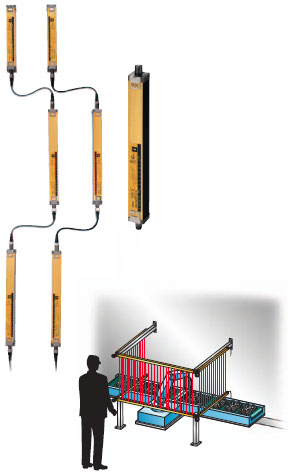

Connect Up To Three Sets in Series without Mutual Interference
Combine Standard Models with Linking Models with Connectors to connect up to three sets in series. Wiring is required only for one set instead of wiring all three sets, as would have been required previously, to enable protecting all sides of hazardous areas. Mutual interference protection is also provided.
Note:Use models with the following model number suffixes for series connection: -01, -03, -04, and -05
Many Connector Variations
Select the type of connector that best suits the machine. (Consult your OMRON representative.)
Various Safety Functions Built into the Sensor.
Supports Many Safety Circuit Configurations
Interlocks
Auto-reset or manual reset
External relay monitoring
Select the Safety Circuits for the Required Safety Standards

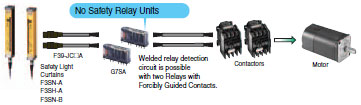

Build Circuits for Type 4 (F3SN-A/F3SH-A) or Type 2 (F3SN-B) with No Relay Units (2 Relays with Forcibly Guided Contacts)
Reduced Costs and Reduced Space Requirements
A built-in external relay monitor function eliminates the need for Safety Relay Units.
Reduced Wiring and Easy Maintenance
One-touch connection with connectors on both end to prevent wiring mistakes.
LED Bars for Easier Application

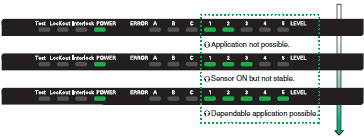

Align Beams with the LED Bar for Easier Installation
Beam Alignment Indicators (Green Only)

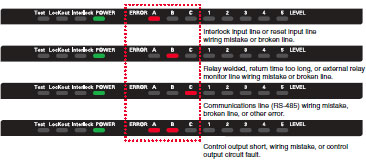

Easily Discern Error Mode Displays to Back Up Safety
Error Indication Example (Red Only)
