SitemapThumbwheel Switch
A7CN / A7CN-L
A Brand New Lineup of A7C Series Compact Thumbwheel Switches
Data Sheet (487KB)
Quick links to 'A7CN / A7CN-L' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Switches
A7CN-106-1
PCB Terminals
A7CN-206(-1)
PCB Terminals

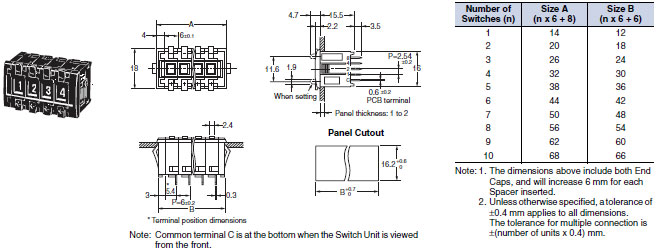

A7CN-L206(-1)
PCB Terminals
Locking Model
Accessories (Order Separately)
End Caps for Push-operated Switches
A7CN-1M-1 Screw Mounting
End Caps for Push-operated Switches
A7CN-2M(-1) Snap-in Mounting
Spacers for Push-operated Switches
A7CN-1P[]-1
Screw Panel Mounting Model
![A7CN-1P[]-1_Dim](img/a7cn_a7cn-l_dm_6.jpg)
Spacers for Push-operated Switches
A7CN-2P[](-1)
Snap-in Mounting Model
_Dim](img/a7cn_a7cn-l_dm_7.jpg)
Note: Unless otherwise indicated, dimensional tolerances for dimensions in the models above are ±0.4mm.
Caution: All units are in millimeters unless otherwise indicated.
