SYSMAC CJ1

Fast!

Versatile Machine Control with the Highest Performance Standards in the Industry.

Expanding the Possibilities of Machine Control:

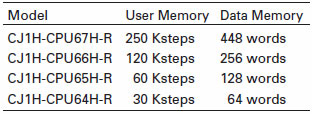

Fast New Flagship "R" CPU Units for the CJ1 Series.

*Conditions: 30 Ksteps, basic-to-special instruction ratio = 7:3, 128 inputs, 128 outputs

All Processes Speeded Up for Enhanced Application Performance.

Small!

Super-compact design that meets the highest standards in its class. Even a narrow space in a machine serves as a control panel.

Compact Size Saves Space when Incorporated into Machines.
Contributes to Size Reduction in Devices and to Space Savings in Control Panels.

Super Compact: Only 90 mm High and 65 mm Deep. Can Be Mounted in a Control Panel with Other Small Components.

Backplane-free Structure Enables Flexible-width Design. Using I/O Units on Expansion Racks Further Improves Space Efficiency in Control Panels.

A Variety of Compact Units

Flexible

Suitable for any application, from small device and te mperature control, to large-scale control over networks.

A Wide Variety of CPU Units and Other Units to Handle Virtually Any Type of Machine Control.

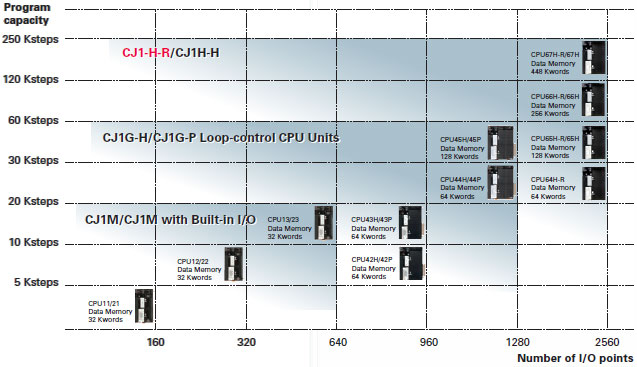

A Complete Lineup of CPU Units, from Low-end to High-end

Despite the wide variety of models, memory allocations, instructions, and I/O Units are all compatible. This makes it easy to design migration from large-scale systems to small devices.

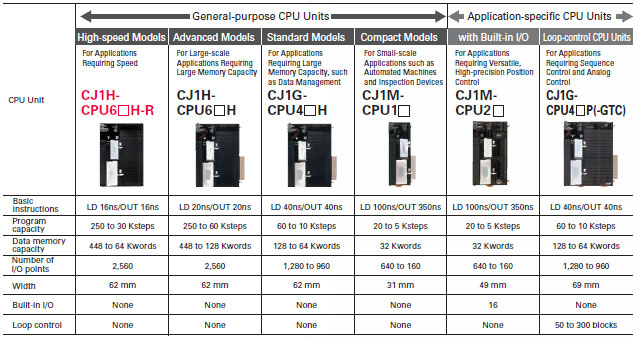

A Wide Selection of CPU Units to Match the Application

Select the optimum CPU Unit according to your system requirements.

Wide Selection of Unit Groups

Choose from a wide range of Units, from Basic I/O Units, Analog Units, and Position Control Units to Ethernet Units. All can be used with any of the CPU Units.

Basic I/O Units (33 models total)

A wide variety of products, such as high-density mountable connectors and removable terminal blocks, is available to meet your requirements.

Units for Special Applications (5 models total)

Units, such as the B7A, are available for interrupt inputs, quick-response inputs, and reduced I/O wiring.

Analog, Process-control, and Temperature Control Units (24 models total)

Input Units and Temperature Control Units are available to handle process data, such as temperatures, currents, and voltages. A complete lineup of models (including models with isolation between channels, high-speed models, and high-precision models) is available for a wide range of applications.

Positioning Units (16 models total)

Various Units are available for control from High-speed Counter Units to Position Control Units for open-collector and line-driver pulse outputs and MECHATROLINK-II communications and Motion Control Units for applications using motion language.

Note:MECHATROLINK-II is a registered trademark of the MECHATROLINK Members Association.

Communications Units (13 models total)

Units are available for general-purpose Ethernet, as well as for data links between PLCs, and the DeviceNet and CompoNet open networks.

Other Units (5 models total)

Units such as RFID Controllers and Data Collection Units are available to meet a wide range of needs.
