SitemapProgrammable Terminal
NV Series
Compact and Simple, Extremely High Cost Performance. The Best PT for Package PLCs
Data Sheet (1208KB)
Quick links to 'NV Series' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
The NV Series of compact Programmable Terminals meet the basic needs for enhanced visibility, simplicity, and cost, and they go even further to provide superior PLC compatibility, easy operation, and cost performance.
Beautiful, Easy-to-understand Displays
Instantly know the system status

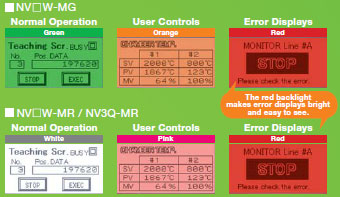

It is obvious in three color LED backlight
The monochrome models provide three backlight colors to perform status displays. For example, use green for normal operation, orange for user controls, and red for errors so that the operating status can be seen at a glance.
Easy Visual Recognition
True Type Fonts for Flexible Screen Designs
You can use True Type fonts in a wide range of sizes from 10 to 240 dots to flexibly design beautiful screens.
*The maximum font size depends on the model.
True Type Fonts
You can select the best Windows® fonts to create the desired screen images or emphasize screen appearance.
Easy Designing
The slim design of NV-series PTs requires very little installation space.
Vertical Installation
The PT can be installed vertically to enable more applications.This enables more flexible designs.
Global Application
Multi-language Support and Safety Standard Compliance
You can switch parts labels and languages. Record up to sixteen character strings in different languages and change all labels at the same time. Switching the language during operation is also very easy. International safety standards have also been met so that you can easily export equipment or transport equipment overseas.
Handle Devices from Various Manufacturers
Global Multivendor Support
You can connect the PT to OMRON or Mitsubishi Electric PLCs or to PLCs from many other global manufacturers.This lets you connect the NV-series PTs without changing the PLC. You can easily use a different PLC manufacturer for each project.
(Applicable PLCs)
OMRON, Mitsubishi Electric, Keyence, Hitachi, Allen-Bradley, Siemens, etc.
A Lineup of Ten Models That Form a New Standard for 3-inch PTs
The lineup includes 3.1-inch horizontal models to 3.6-inch QVGA models. Select the size and price that are best for each system.

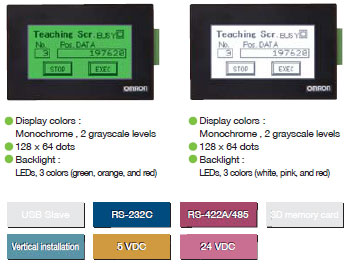

3.1 inch
Compact Horizontal Models
NV3W
A 5-V model is available that can be powered from an OMRON PLC

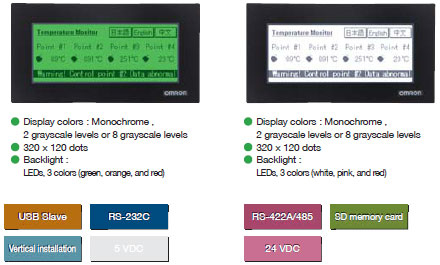

3.6 inch
QVGA Models
NV3Q
