SitemapDigital Timer
H5CX
DIN 48 × 48-mm Multifunction Digital Timer/2-stage Digital Timer
Data Sheet (Features) (820KB)
Quick links to 'H5CX' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
H5CX Pick up
H5CX-A[]-N/-L[]-N Digital Timers
Digital Timers

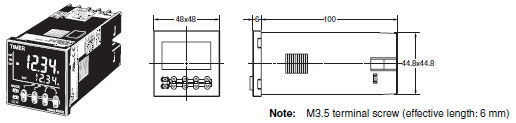

H5CX-A-N/-AS-N (Flush Mounting Models)
Note:M3.5 terminal screw (effective length: 6 mm)

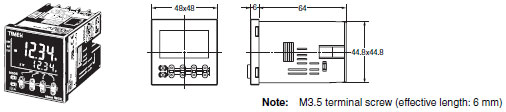

H5CX-AD-N/-ASD-N (Flush Mounting Models)
Note:M3.5 terminal screw (effective length: 6 mm)

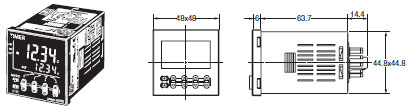

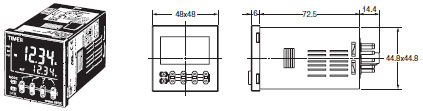

H5CX-A11[]-N (Flush Mounting/Surface Mounting Models)
![H5CX-A11[]-N_Dim1](img/207_dm_3.gif)

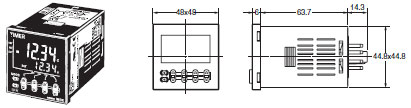

H5CX-L8[]-N (Flush Mounting/Surface Mounting Models)
![H5CX-L8[]-N_Dim1](img/207_dm_4.gif)
Dimensions with Flush Mounting Adapter

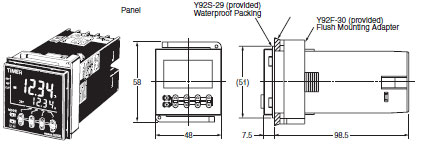

H5CX-A-N/-AS-N (Provided with Adapter and Waterproof Packing)

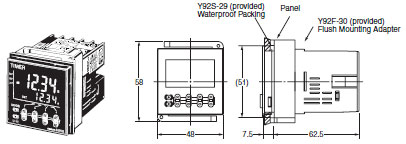

H5CX-AD-N/-ASD-N (Provided with Adapter and Waterproof Packing)

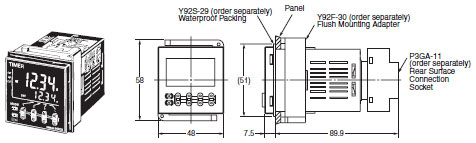

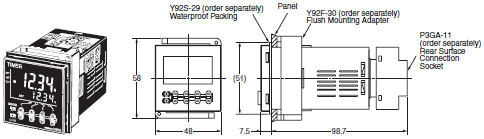

H5CX-A11[]-N (Adapter and Waterproof Packing Ordered Separately)
![H5CX-A11[]-N_Dim2](img/207_dm_7.gif)
H5CX-L8[]-N (Adapter and Waterproof Packing Ordered Separately)
![H5CX-L8[]-N_Dim2](img/207_dm_8.gif)

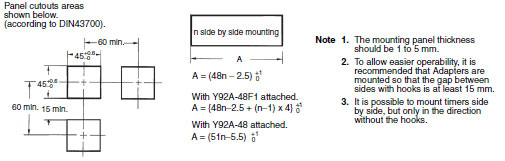

Panel Cutouts
Panel cutouts areas shown below. (according to DIN43700).
Note:
1.The mounting panel thickness should be 1 to 5 mm.
2.To allow easier operation, it is recommended that Adapters be mounted so that the gap between sides with hooks is at least 15 mm (i.e., with the panel cutouts separated by at least 60 mm).
3.It is possible to mount Timers side by side, but only in the direction without the hooks. (However, if Timers are mounted side by side, water resistance will be lost.)

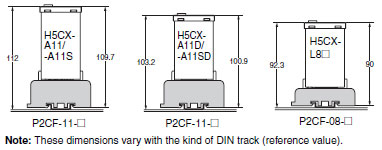

Dimensions with Front Connecting Socket
*These dimensions vary with the type of DIN track (reference value).
Digital Timer H5CX-B[]-N
Digital Timers

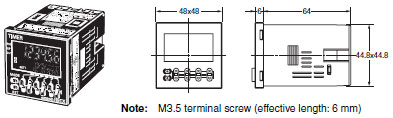

H5CX-BWSD-N (Flush Mounting Models)
Note:M3.5 terminal screw (effective length: 6 mm)
Dimensions with Flush Mounting Adapter

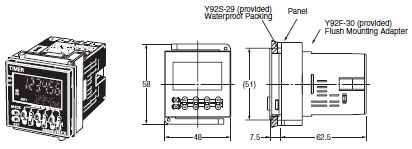

H5CX-BWSD-N (Provided with Adapter and Waterproof Packing)

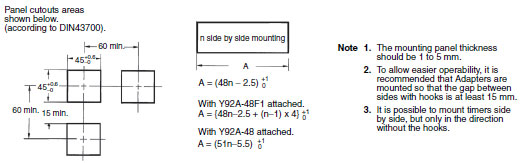

Panel Cutouts
Panel cutouts areas shown below. (according to DIN43700)
Note:
1.The mounting panel thickness should be 1 to 5 mm.
2.To allow easier operation, it is recommended that Adapters be mounted so that the gap between sides with hooks is at least 15 mm (i.e., with the panel cutouts separated by at least 60 mm).
3.It is possible to mount Timers side by side, but only in the direction without the hooks. However, if Timers are mounted side by side, water resistance will be lost.
Caution: All units are in millimeters unless otherwise indicated.
