CP1E
Package PLCs with Exceptional Cost
Data Sheet (Features) (1625KB)
Quick links to 'CP1E' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Exceptional Cost
Responding to Global Competition with More Device Control Possibilities
The CP1E all-in-one package PLCs provide high cost performance to further reduce costs by allowing you to select the optimal CPU Unit from the E-type Basic Models or N-type Application Models.
The optimal cost can be achieved efficiently with two types CP1E CPU Units.
Simple and User Friendly
Intuitive control with "Smart Input."
Visual decision making is supported with the display of terminal locations.
Easy Ladder Programming with "Smart Input."
Easy Input Editor
● Instruction and Address Input Assist Functions
When you begin typing an instruction from the keyboard in Ladder Editor Mode, suggested instructions are displayed and the addresses are automatically entered.
Connecting lines are added automatically based on the cursor position, enabling intuitive ladder programming.
Note:In the case of program capacity 1.5 Ksteps
Easy Input Editor with Smart Input Function
When you begin typing an instruction in Ladder Editor Mode, suggested instructions are displayed.
User-friendly Ladder Program Input
● Automatic Connecting Line Insertion
With the automatic connecting line insertion function the necessary connection is added automatically based on the curser position.
When an instruction is input at the curser, a connecting line is automatically inserted.
● Automatic Column Insertion When Inserting Instructions
The column is automatically inserted when an instruction is added even if the curser is above another instruction.
When an instruction is input at the curser, a column is automatically inserted for the instruction.
Easily Reuse Ladder Programming
● Copying with Address Incrementing
To create the same group of ladder instructions more than once, with the address addition copy function, the instructions can be reused simply by inputting an address offset.
Intuitive Menu Structure
● Intuitive Menu Display
An intuitively designed menu structure makes it easy to see the overall system simply by looking at the menu for smooth operation without referring to a manual.
Commercially Available USB Cables Can Be Connected
CP1E CPU Units use USB for the peripheral port. Computers can be connected using commercially available USB cables.
Without the need for USB conversion cables or special cables, connection is easier and cable cost is low.
I/O Status at a Glance
The terminal layout display features I/O indicators. The indicators are in the same position as the terminals to let you see the I/O status at a glance. You can easily identify I/O status or perform status checks at startup or during operation.
Efficient and Effective
Flexibly handle even small-scale systems.
Various Option Units available for increased expandability.
More Applications with Advanced Control Capabilities and Functionality (N-type only)
The CP1E N-type CPU Units are equipped with high-speed counters, pulse outputs, and a built-in serial port.
These features enable controlling a wide range of devices.
Pulse Outputs
Two 100kHz pulse outputs for high-precision position control.
Note:Models with transistor outputs.
Modbus-RTU Easy Master
Specify Inverter speeds via RS-485.
High-speed Counters
Control multiple axes with one PLC using the two 100kHz and four 10kHz, single-phase high-speed counters.
Serial PLC Links
Link data with up to 10 words between up to nine CP1E-N CPU Units when controlling a device with multiple CP1E-N PLCs.

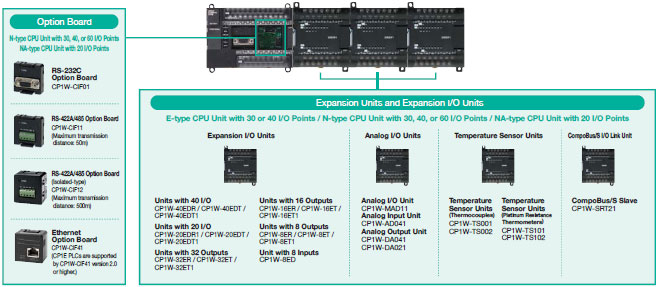

More Applications with Option Units
Three expansion units / expansion I/O units can be added to a cpu unit with 30 or 40 I/O points.
A serial option board can be added to N-type CPU Unit with 30 or 40 I/O points.
