SitemapVision Sensor
FZ3 Series
Industry's First Multi-task Processing System Offering Greatest Sensing Performance
Data Sheet (10787KB)
Quick links to 'FZ3 Series' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Controllers

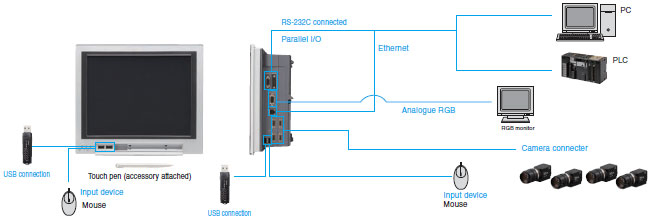

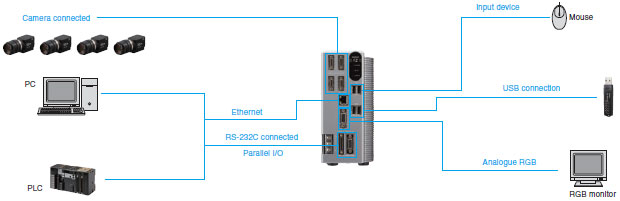

Dual-task, High-grade, High-speed Controllers and Dual-task, High-speed Controllers
| Model | NPN Output | FZ3- 900 | FZ3- 900-10 | FZ3- H900 | FZ3- H900-10 | FZ3- 950 | FZ3- 950-10 | FZ3- H950 | FZ3- H950-10 | |
| PNP Output | FZ3- 905 | FZ3- 905-10 | FZ3- H905 | FZ3- H905-10 | FZ3- 955 | FZ3- 955-10 | FZ3- H955 | FZ3- H955-10 | ||
| Connected Camera | Please refer to the "Camera Connection" table in below. | |||||||||
| No. of Cameras | 2 | 4 | 2 | 4 | 2 | 4 | 2 | 4 | ||
| Processing resolution | When connected to a 300,000-pixel camera | 640(H)×480(V) | ||||||||
| When connected to a 2 million-pixel camera | 1600(H)×1200(V) | |||||||||
| When connected to a 5 million-pixel camera | 2448(H)×2044(V) | |||||||||
| No. of scenes | 32 | |||||||||
| Number of logged images *1 | When connected to a 300,000- pixel camera | Connected to 1 camera | Color camera: 250, Monochrome Camera: 252 | |||||||
| Connected to 2 cameras | Color camera: 125, Monochrome Camera: 126 | |||||||||
| Connected to 3 cameras | Color camera: 83, Monochrome Camera: 84 | |||||||||
| Connected to 4 cameras | Color camera: 62, Monochrome Camera: 63 | |||||||||
| When connected to a 2 million- pixel camera | Connected to 1 camera | Color camera: 40, Monochrome Camera: 40 | ||||||||
| Connected to 2 cameras | Color camera: 20, Monochrome Camera: 20 | |||||||||
| Connected to 3 cameras | Color camera: 13, Monochrome Camera: 13 | |||||||||
| Connected to 4 cameras | Color camera: 10, Monochrome Camera: 10 | |||||||||
| When connected to a 5 million- pixel camera | Connected to 1 camera | Color camera: 15, Monochrome Camera: 15 | ||||||||
| Connected to 2 cameras | Color camera: 7, Monochrome Camera: 7 | |||||||||
| Connected to 3 cameras | Color camera: 5, Monochrome Camera: 5 | |||||||||
| Connected to 4 cameras | Color camera: 3, Monochrome Camera: 3 | |||||||||
| Codes that can be read with FZ3 | ＜Bar Codes＞ JAN/EAN/UPC (including add-on codes), Code 39, Codabar (NW-7), ITF (Interleaved 2 of 5), Code 93, Code 128, GS1-128, GS1 DataBar (RSS-14/RSS Limited/ RSS Expanded) ＜2D Codes＞ Data Matrix (ECC200), QR Code | |||||||||
| Operation | Touch pen, mouse, etc. | Mouse or similar device | ||||||||
| Settings | Create series of processing steps by editing the flowchart (Help messages provided). | |||||||||
| Serial communications | RS-232C/422A:1CH | |||||||||
| Network communications | Ethernet 100BASE-TX/10BASE-T | |||||||||
| Parallel I/O | (When used in Multi-line random-trigger mode) 17 inputs (RESET, STEP0/ENCTRIG_Z0, STEP1/ENCTRIG_Z1, DSA0 to 1, ENCTRIG_A0 to 1, ENCTRIG_B0 to 1, DI0 to 7), 29 outputs (RUN/BUSY1, BUSY0, GATE0 to 1, OR0 to 1, READY0 to 1, ERROR, STGOUT0 to 3, DO0 to 15) (When used in other mode) 13 inputs (RESET, STEP0/ENCTRIG_Z0, DSA0, ENCTRIG_A0, ENCTRIG_B0, DI0 to 7), 26 outputs (RUN, BUSY0, GATE0, OR0, READY0, ERROR, STGOUT0 to 3, DO0 to 15) | |||||||||
| Monitor interface | Integrated Controller and LCD 12.1 inch TFT color LCD (Resolution: XGA 1,024 × 768 dots) | Analog RGB video output, 1 channel (Resolution: XGA 1,024 × 768 dots) | ||||||||
| USB interface | 4 channels (supports USB 1.1 and 2.0) | |||||||||
| Power supply voltage | 20.4 to 26.4 VDC | |||||||||
| Current consumption *3 | When connected to a intelligent or autofocus camera | 5 A max. | 7.5 A max. | 5 A max. | 7.5 A max. | 5 A max. | 7.5 A max. | 5 A max. | 7.5 A max. | |
| When connected to a 300,000-pixel camera | 3.7 A max. | 4.9 A max. | 3.7 A max. | 4.9 A max. | 3.7 A max. | 4.9 A max. | 3.7 A max. | 4.9 A max. | ||
| When connected to a 2 million-pixel camera | ||||||||||
| When connected to a 5 million-pixel camera | ||||||||||
| Ambient temperature range | Operating: 0 to 45°C, 0 to 50°C *2, Storage: -20 to 65°C (with no icing or condensation) | |||||||||
| Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) | |||||||||
| Weight | Approx. 3.2 kg | Approx. 3.4 kg | Approx. 3.2 kg | Approx. 3.4 kg | Approx. 1.8 kg | Approx. 1.9 kg | Approx. 1.8 kg | Approx. 1.9 kg | ||
| Accessories | Touch pen (one, inside the front panel), Please Read First, Instruction Manual (Setup), 6 mounting brackets | Please Read First, Instruction Manual (Setup) | ||||||||
*1.The image logging capacity changes when multiple cameras of different types are connected at the same time.
*2.The operation mode can be changed on the controller menu.
*3.The current consumption when the maximum number of cameras supported by each controller are connected. If a strobe controller model is connected to a lamp, the current consumption is as high as when an intelligent camera is connected.
High-grade, High-speed Controllers and High-speed Controllers
| Model | NPN Output | FZ3- 700 | FZ3- 700-10 | FZ3- H700 | FZ3- H700-10 | FZ3- 750 | FZ3- 750-10 | FZ3- H750 | FZ3- H750-10 | |
| PNP Output | FZ3- 705 | FZ3- 705-10 | FZ3- H705 | FZ3- H705-10 | FZ3- 755 | FZ3- 755-10 | FZ3- H755 | FZ3- H755-10 | ||
| Connected Camera | Please refer to the "Camera Connection" table in below. | |||||||||
| No. of Cameras *1 | 2 | 4 | 2 | 4 | 2 | 4 | 2 | 4 | ||
| Processing resolution | When connected to a 300,000-pixel camera | 640(H)×480(V) | ||||||||
| When connected to a 2 million-pixel camera | 1600(H)×1200(V) | |||||||||
| When connected to a 5 million-pixel camera | 2448(H)×2044(V) | |||||||||
| No. of scenes | 32 | |||||||||
| Number of logged images *2 | When connected to a 300,000- pixel camera | Connected to 1 camera | Color camera: 250, Monochrome Camera: 252 | |||||||
| Connected to 2 cameras | Color camera: 125, Monochrome Camera: 126 | |||||||||
| Connected to 3 cameras | Color camera: 83, Monochrome Camera: 84 | |||||||||
| Connected to 4 cameras | Color camera: 62, Monochrome Camera: 63 | |||||||||
| When connected to a 2 million- pixel camera | Connected to 1 camera | Color camera: 40, Monochrome Camera: 40 | ||||||||
| Connected to 2 cameras | Color camera: 20, Monochrome Camera: 20 | |||||||||
| Connected to 3 cameras | Color camera: 13, Monochrome Camera: 13 | |||||||||
| Connected to 4 cameras | Color camera: 10, Monochrome Camera: 10 | |||||||||
| When connected to a 5 million- pixel camera | Connected to 1 camera | Color camera: 11, Monochrome Camera: 11 | ||||||||
| Connected to 2 cameras | Color camera: 5, Monochrome Camera: 5 | |||||||||
| Codes that can be read with FZ3 | ＜Bar Codes＞ JAN/EAN/UPC (including add-on codes), Code 39, Codabar (NW-7), ITF (Interleaved 2 of 5), Code 93, Code 128, GS1-128, GS1 DataBar (RSS-14/RSS Limited/RSS Expanded) ＜2D Codes＞ Data Matrix (ECC200), QR Code | |||||||||
| Operation | Touch pen, mouse, etc. | Mouse or similar device | ||||||||
| Settings | Create series of processing steps by editing the flowchart (Help messages provided). | |||||||||
| Serial communications | RS-232C/422A:1CH | |||||||||
| Network communications | Ethernet 100BASE-TX/10BASE-T | |||||||||
| Parallel I/O | 11 inputs (RESET, STEP, DSA, and DI 0 to 7), 26 outputs (RUN, BUSY, GATE, OR, READY, ERROR, STGOUT 0 to 3, and DO 0 to 15) | |||||||||
| Monitor interface | Integrated Controller and LCD 12.1 inch TFT color LCD (Resolution: XGA 1,024 × 768 dots) | Analog RGB video output, 1 channel (Resolution: XGA 1,024 × 768 dots) | ||||||||
| USB interface | 4 channels (supports USB 1.1 and 2.0) | |||||||||
| Power supply voltage | 20.4 to 26.4 VDC | |||||||||
| Current consumption *4 | When connected to a intelligent or autofocus camera | 5 A max. | 7.5 A max. | 5 A max. | 7.5 A max. | 5 A max. | 7.5 A max. | 5 A max. | 7.5 A max. | |
| When connected to a 300,000-pixel camera | 3.7 A max. | 4.9 A max. | 3.7 A max. | 4.9 A max. | 3.7 A max. | 4.9 A max. | 3.7 A max. | 4.9 A max. | ||
| When connected to a 2 million-pixel camera | ||||||||||
| When connected to a 5 million-pixel camera | ||||||||||
| Ambient temperature range | Operating: 0 to 45°C, 0 to 50°C *3, Storage: -20 to 65°C (with no icing or condensation) | |||||||||
| Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) | |||||||||
| Weight | Approx. 3.2 kg | Approx. 3.4 kg | Approx. 3.2 kg | Approx. 3.4 kg | Approx. 1.8 kg | Approx. 1.9 kg | Approx. 1.8 kg | Approx. 1.9 kg | ||
| Accessories | Touch pen (one, inside the front panel), Please Read First, Instruction Manual (Setup), 6 mounting brackets | Please Read First, Instruction Manual (Setup) | ||||||||
*1.When connecting 5 million-pixel cameras, up to two cameras can be connected.
*2.The number of logged images will vary when connecting multiple Cameras with different models.
*3.The operating mode can be switched from the Controller Menu settings.
*4.When the strobe controller is connected to the lights, the controller uses power as much as it does when connected to the intelligent camera.
*5.Do not install the firmware for FZ2 in any High Grade High Speed or High Grade controller of the FZ3 series. It will lead to the failure of the controller. For software download, please contact your Omron representative.
High-grade Controllers and Standard Controllers
| Model | NPN Output | FZ3- 300 | FZ3- 300-10 | FZ3- H300 | FZ3- H300-10 | FZ3- 350 | FZ3- 350-10 | FZ3- H350 | FZ3- H350-10 | |
| PNP Output | FZ3- 305 | FZ3- 305-10 | FZ3- H305 | FZ3- H305-10 | FZ3- 355 | FZ3- 355-10 | FZ3- H355 | FZ3- H355-10 | ||
| Connected Camera | Please refer to the "Camera Connection" table in in below. | |||||||||
| No. of Cameras | 2 | 4 | 2 | 4 | 2 | 4 | 2 | 4 | ||
| Processing resolution | 640(H)×480(V) | |||||||||
| No. of scenes | 32 | |||||||||
| Number of logged images *1 | When connected to a 300,000- pixel camera | Connected to 1 camera | Color camera: 250, Monochrome Camera: 252 | |||||||
| Connected to 2 cameras | Color camera: 125, Monochrome Camera: 126 | |||||||||
| Connected to 3 cameras | Color camera: 83, Monochrome Camera: 84 | |||||||||
| Connected to 4 cameras | Color camera: 62, Monochrome Camera: 63 | |||||||||
| Operation | Touch pen, mouse, etc. | Mouse or similar device | ||||||||
| Settings | Create series of processing steps by editing the flowchart (Help messages provided). | |||||||||
| Serial communications | RS-232C/422A:1CH | |||||||||
| Network communications | Ethernet 100BASE-TX/10BASE-T | |||||||||
| Parallel I/O | 11 inputs (RESET, STEP, DSA, and DI 0 to 7), 26 outputs (RUN, BUSY, GATE, OR, READY, ERROR, STGOUT 0 to 3, and DO 0 to 15) | |||||||||
| Monitor interface | Integrated Controller and LCD 12.1 inch TFT color LCD (Resolution: XGA 1,024 × 768 dots) | Analog RGB video output, 1 channel (Resolution: XGA 1,024 × 768 dots) | ||||||||
| USB interface | 4 channels (supports USB 1.1 and 2.0) | |||||||||
| Power supply voltage | 20.4 to 26.4 VDC | |||||||||
| Current consumption *3 | When connected to a intelligent or autofocus camera | 5 A max. | 7.5 A max. | 5 A max. | 7.5 A max. | 5 A max. | 7.5 A max. | 5 A max. | 7.5 A max. | |
| When connected to a 300,000-pixel camera | 3.7 A max. | 4.9 A max. | 3.7 A max. | 4.9 A max. | 3.7 A max. | 4.9 A max. | 3.7 A max. | 4.9 A max. | ||
| Ambient temperature range | Operating: 0 to 45°C, 0 to 50°C *2, Storage: -20 to 65°C (with no icing or condensation) | |||||||||
| Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) | |||||||||
| Weight | Approx. 3.2 kg | Approx. 3.4 kg | Approx. 3.2 kg | Approx. 3.4 kg | Approx. 1.8 kg | Approx. 1.9 kg | Approx. 1.8 kg | Approx. 1.9 kg | ||
| Accessories | Touch pen (one, inside the front panel), Please Read First, Instruction Manual (Setup), 6 mounting brackets | Please Read First, Instruction Manual (Setup) | ||||||||
*1.The number of logged images will vary when connecting multiple Cameras with different models.
*2.The operating mode can be switched from the Controller Menu settings.
*3.When the strobe controller is connected to the lights, the controller uses power as much as it does when connected to the intelligent camera.
Cameras
Intelligent camera, autofocus camera
| FZ-SLC100 | FZ-SLC15 | FZ-SZC100 | FZ-SZC15 | |
| Image elements | Interline transfer reading all pixels, 1/3-inch CCD image elements | |||
| Color/Monochrome | Color | |||
| Effective pixels | 640 (H) × 480 (V) | |||
| Pixel size | 7.4 (μm) × 7.4 (μm) | |||
| Shutter function | Electronic shutter; select shutter speeds from 1/10 to 1/50,000 s | |||
| Partial function | 12 to 480 lines | |||
| Frame rate (image read time) | 80fps (12.5ms) | |||
| Field of vision *2 | 13 to 100mm *1 | 2.9 to 14.9mm *1 | 13 to 100mm *1 | 2.9 to 14.9mm *1 |
| Installation distance | 70 to 190mm *1 | 35 to 55mm *1 | 77.5 to 197.5mm *1 | 47.5 to 67.5mm |
| LED class *3 (lighting) | Class 2 | --- | ||
| Ambient temperature range | Operating: 0 to 50°C, Storage: -25 to 65°C (with no icing or condensation) | |||
| Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) | |||
| Weight | Approx. 670 g | Approx. 700 g | Approx. 500 g | |
| Accessories | Instruction Sheet and hexagonal wrench | |||
*1.Tolerance: ±5% max.
*2.The length of the visual field is the lengths along the Y axis.
*3.Applicable standards: IEC 60825-1: 1993 + A1: 1997 + A2-2001, EN 60825-1: 1994 + A1: 2002 + A2: 2001
Digital cameras
| FZ-S | FZ-SC | FZ-S2M | FZ-SC2M | FZ-S5M | FZ-SC5M | |
| Image elements | Interline transfer reading all pixels, 1/3-inch CCD image elements | Interline transfer reading all pixels, 1/1.8-inch CCD image elements | Interline transfer reading all pixels, 2/3-inch CCD image elements | |||
| Color/Monochrome | Monochrome | Color | Monochrome | Color | Monochrome | Color |
| Effective pixels | 640 (H) × 480 (V) | 1600 (H) × 1200 (V) | 2448 (H) × 2044 (V) | |||
| Pixel size | 7.4 (μm) × 7.4 (μm) | 4.4 (μm) × 4.4 (μm) | 3.45 (μm) × 3.45 (μm) | |||
| Shutter function | Electronic shutter; select shutter speeds from 1/10 to 1/50,000 s | Electronic shutter; select shutter speeds from 1/10 to 1/50,000 s | Electronic shutter; select shutter speeds from 1/10 to 1/50,000 s | |||
| Partial function | 12 to 480 lines | 12 to 1200 lines | 12 to 2044 lines | |||
| Frame rate (image read time) | 80fps (12.5ms) | 30fps (33.3ms) | 16fps (62.5ms) | |||
| Field of vision, installation distance | Selecting a lens according to the field of vision and installation distance | |||||
| Ambient temperature range | Operating: 0 to 50°C Storage: -25 to 65°C (with no icing or condensation) | Operating: 0 to 40°C Storage: -25 to 65°C (with no icing or condensation) | Operating: 0 to 40°C Storage: -25 to 65°C (with no icing or condensation) | |||
| Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) | |||||
| Weight | Approx. 55g | Approx. 76g | Approx. 140g | |||
| Accessories | Instruction manual | |||||
Small digital cameras
| FZ-SF | FZ-SFC | FZ-SP | FZ-SPC | |
| Image elements | Interline transfer reading all pixels, 1/3-inch CCD image elements | |||
| Color/Monochrome | Monochrome | Color | Monochrome | Color |
| Effective pixels | 640 (H) × 480 (V) | |||
| Pixel size | 7.4 (μm) × 7.4 (μm) | |||
| Shutter function | Electronic shutter; select shutter speeds from 1/10 to 1/50,000 s | |||
| Partial function | 12 to 480 lines | |||
| Frame rate (image read time) | 80fps (12.5ms) | |||
| Field of vision, installation distance | Selecting a lens according to the field of vision and installation distance | |||
| Ambient temperature range | Operating: 0 to 50°C (camera amp) 0 to 45°C (camera head) Storage: -25 to 65°C (with no icing or condensation) | Operating: 0 to 50°C (camera amp) 0 to 45°C (camera head) Storage: -25 to 65°C (with no icing or condensation) | ||
| Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) | Operating and storage: 35% to 85% (with no condensation) | ||
| Weight | Approx. 150g | Approx. 150g | ||
| Accessories | Instruction manual, installation bracket, Four mounting brackets(M2) | Instruction manual | ||
LCD Monitor, Cable
LCD Monitor
| FZ-M08 | |
| Size | 8.4 inches |
| Type | Liquid crystal color TFT |
| Resolution | 1,024 × 768 dots |
| Input signal | Analog RGB video input, 1 channel |
| Power supply voltage | 21.6 to 26.4 VDC |
| Current consumption | Approx. 0.7 A max. |
| Ambient temperature range | Operating: 0 to 50°C, Storage: -25 to 65°C (with no icing or condensation) |
| Ambient humidity range | Operating and storage: 35 to 85% (with no condensation) |
| Weight | Approx. 1.2 kg |
| Accessories | Instruction Sheet and 4 mounting brackets |
Camera Cables
| Item | FZ-VS (2m) | FZ-VSB(2m) | FZ-VSL(2m) |
| Shock resistiveness (durability) | 10 to 150Hz single amplitude 0.15mm 3 directions, 8 strokes, 4 times | ||
| Ambient temperature range | Operation and storage: 0 to +65°C (with no icing or condensation) | ||
| Ambient humidity range | Operation and storage: 40 to 70%RH (with no condensation) | ||
| Ambient atmosphere | No corrosive gases | ||
| Material | Cable sheath, connector: PVC | ||
| Minimum bending radius | 69 mm | 81 mm | 69 mm |
| Weight | approx. 170g | approx. 220g | approx. 170g |
Monitor Cable
| Item | FZ-VM |
| Vibration resistiveness | 10 to 150Hz single amplitude 0.15mm 3 directions, 8 strokes, 4 times |
| Ambient temperature range | Operation: 0 to +50°C; Storage: -20 to +65°C (with no icing or condensation) |
| Ambient humidity range | Operation and storage: 35 to 85%RH (with no condensation) |
| Ambient atmosphere | No corrosive gases |
| Material | Cable sheath: heat-resistant PVC Connector: PVC |
| Minimum bending radius | 75 mm |
| Weight | approx. 170g |
Cable Extension Unit
| FZ-VSJ | |
| Power supply voltage *1 | 11.5 to 13.5 VDC |
| Current consumption *2 | 1.5 A max. |
| Ambient temperature range | Operating: 0 to 50°C, Storage: -25 to 65°C (with no icing or condensation) |
| Ambient humidity range | Operating and storage: 35 to 85% (with no condensation) |
| Maximum Units connectable | 2 Units per Camera |
| Weight | Approx. 240 g |
| Accessories | Instruction Sheet and 4 mounting screws |
*1.A power supply must be connected to the Strobe Controller and Camera when connecting a FZ-SLC100/SLC15/SZC100/SZC15 and using a Strobe Controller (3Z4S-LT MLEK-C100E1TS2.)
*2.T he current consumption is when every Camera and Strobe Controller is connected to a power supply.
Long-distance Camera Cables
| Item | FZ-VS2 (15m) | FZ-VSL2(15m) |
| Shock resistiveness (durability) | 10 to 150Hz single amplitude 0.15mm 3 directions, 8 strokes, 4 times | |
| Ambient temperature range | Operation and storage: 0 to +65°C (with no icing or condensation) | |
| Ambient humidity range | Operation and storage: 40 to 70%RH (with no condensation) | |
| Ambient atmosphere | No corrosive gases | |
| Material | Cable sheath, connector: PVC | |
| Minimum bending radius | 93mm | |
| Weight | approx. 1600g | |
Parallel Cable
| Item | FZ-VP |
| Vibration resistiveness | 10 to 150Hz single amplitude 0.15mm 3 directions, 8 strokes, 4 times |
| Ambient temperature range | Operation: 0 to +50°C; Storage: -20 to +65°C (with no icing or condensation) |
| Ambient humidity range | Operation and storage: 35 to 85%RH (with no condensation) |
| Ambient atmosphere | No corrosive gases |
| Material | Cable sheath: heat-resistant PVC Connector: resin |
| Minimum bending radius | 75 mm |
| Weight | approx. 160g |
Halation cut illumination
General specifications
| FZ-SXC RB7018BR-4S | FZ-LTC RB7018BR-4S | FZ-LT RB7018BR-4S | |
| Current consumption | 18 W or less (12 VDC, 1.5 A max.) (including camera and strobe controller) | ||
| Vibration resistance | 10 to 150Hz single amplitude 0.35mm (maximum acceleration 50m/s2) 3 directions, 8 strokes, 10 times | ||
| Impact resistance | 150m/s2 6 directions, 3 times | ||
| Ambient temperature | Operating: 0 to 50°C, Storage: -25 to 60°C (with no icing or condensation) | ||
| Ambient humidity | Operation and storage: 35 to 85%RH (with no condensation) | ||
| Ambient atmosphere | No corrosive gases | ||
| Protective structure | IEC60259 IP20 | ||
| Material | Case: zinc-coated steel plate, Cover: acrylic board, Clasp: stainless steel plate | ||
| Weight including cables | Approx. 600 g | Approx. 500 g | Approx. 400 g |
Illumination specifications
| Specifications | |
| Source | Blue LED (wavelength: Approx. 470nm) Red LED (wavelength: 630nma) |
| Illumination system | 8 blocks luminous intensity variable illumination |
| Average lifetime | 5,000 hours (Time it takes from manufacture for a 50% reduction in luminous intensity at an ambient temperature of 25°C, maximum brightness, and continuous illumination.) |
Connection Table
Camera Connection Table
| Type of camera | Model | Resolution | Standard controllers (FZ3-3[][], FZ3-3[][]- 10) | High-grade controllers (FZ3-H3[][], FZ3-H3[][]- 10) | High-speed controllers (FZ3-7[][], FZ3-7[][]- 10) | High grade, high speed controllers (FZ3-H7[][], FZ3-H7[][]- 10) | Dual-task, Highspeed Controllers (FZ3-H9[][], FZ3-H9[][]- 10) | Dual-task, High-grade, High-speed Controllers (FZ3-H9[][], FZ3-H9[][]- 10) |
| Intelligent cameras | FZ-SLC100 | 300,000 Pixels | ○ | ○ | ○ | ○ | ○ | ○ |
| FZ-SLC15 | 300,000 Pixels | ○ | ○ | ○ | ○ | ○ | ○ | |
| Autofocus cameras | FZ-SZC100 | 300,000 Pixels | ○ | ○ | ○ | ○ | ○ | ○ |
| FZ-SZC15 | 300,000 Pixels | ○ | ○ | ○ | ○ | ○ | ○ | |
| Digital cameras | FZ-SC | 300,000 Pixels | ○ | ○ | ○ | ○ | ○ | ○ |
| FZ-S | 300,000 Pixels | ○ | ○ | ○ | ○ | ○ | ○ | |
| FZ-SC2M | 2 million pixels | × | × | ○ | ○ | ○ | ○ | |
| FZ-S2M | 2 million pixels | × | × | ○ | ○ | ○ | ○ | |
| FZ-SC5M | 5 million pixels | × | × | ○ * | ○ * | ○ | ○ | |
| FZ-S5M | 5 million pixels | × | × | ○ * | ○ * | ○ | ○ | |
| Small digital cameras | FZ-SFC | 300,000 Pixels | ○ | ○ | ○ | ○ | ○ | ○ |
| FZ-SF | 300,000 Pixels | ○ | ○ | ○ | ○ | ○ | ○ | |
| FZ-SPC | 300,000 Pixels | ○ | ○ | ○ | ○ | ○ | ○ | |
| FZ-SP | 300,000 Pixels | ○ | ○ | ○ | ○ | ○ | ○ |
*When connecting 5 million-pixel cameras, up to two cameras can be connected.
Cameras/Cables Connection Table
| Type of camera | Model | Cable length | Intelligent cameras Autofocus cameras | Digital cameras | Small digital cameras | ||
| 300,000-pixel | 2 million-pixel | 5 million-pixel | Pen type/ flat type | ||||
| Camera Cables Right-angle camera cables | FZ-VS FZ-VSL | 2m | ○ | ○ | ○ | ○ | ○ |
| 5m | ○ | ○ | ○ | ○ | ○ | ||
| 10m | × | ○ | ○ | × | ○ | ||
| Bend resistant camera cables | FZ-VSB | 2m | ○ | ○ | ○ | ○ | ○ |
| 5m | ○ | ○ | ○ | ○ | ○ | ||
| 10m | × | ○ | × | × | ○ | ||
| Long-distance camera cable Long-distance right-angle camera cable | FZ-VS2 FZ-VSL2 | 15m | × | ○ | ○ | × | ○ |
Caution: In the interenst of product improvement, specifications are subject to change without notice.
Top of page
© Copyright OMRON Corporation 2007 - 2010. All Rights Reserved.
