SitemapSwitch Mode Power Supply (15/35/50/100/150/300/600-W Models)
S8JX
Data Sheet (2759KB)
Quick links to 'S8JX' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
S8JX Pick up
Front-mounting Models

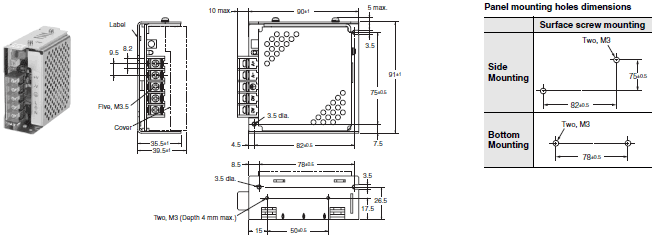

S8JX-G015[][] (15 W)
S8JX-G015[][]C (15 W)
S8JX-G035[][] (35 W)
S8JX-G035[][]C (35 W)
![S8JX-G015[][]_Dim](img/1989_dm_1.gif)

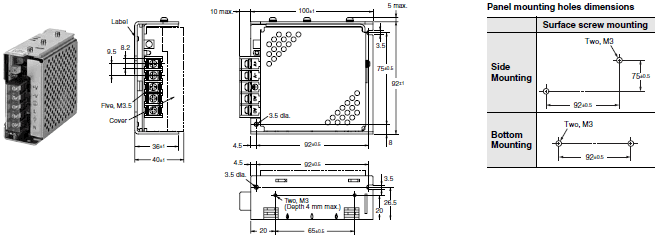

S8JX-G050[][] (50 W)
S8JX-G050[][]C (50 W)
![S8JX-G050[][]_Dim](img/1989_dm_2.gif)

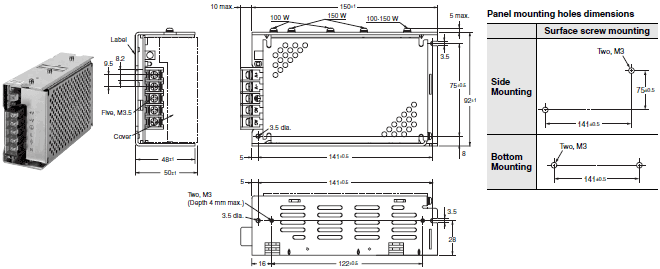

S8JX-G100[][] (100 W)
S8JX-G100[][]C (100 W)
S8JX-G15024 (150 W)
S8JX-G15024C (150 W)
![S8JX-G100[][]_Dim](img/1989_dm_3.gif)

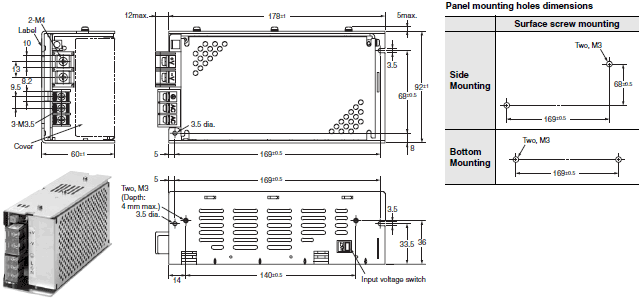

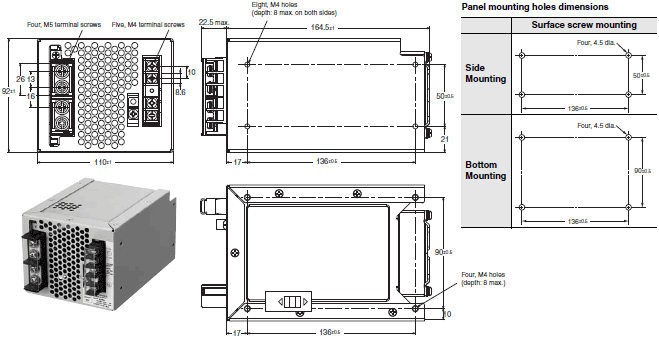

S8JX-G30024C (300 W)

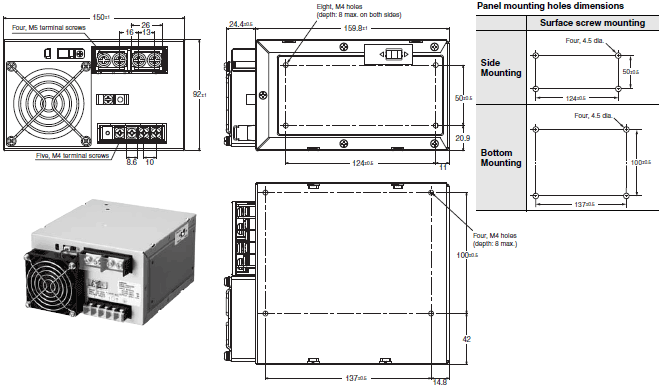

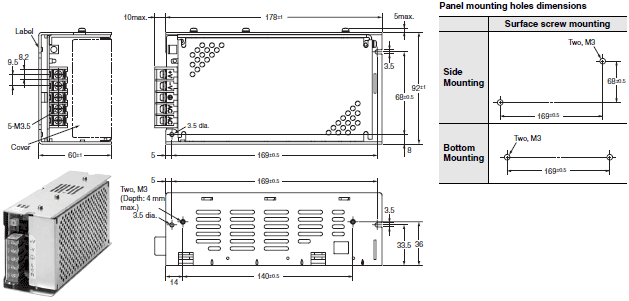

S8JX-G60024C (600 W)
Mounting Bracket Provided with Front-mounting Power Supplies
15-/35-/50-/100-/150-W Models
Front-mounting Bracket

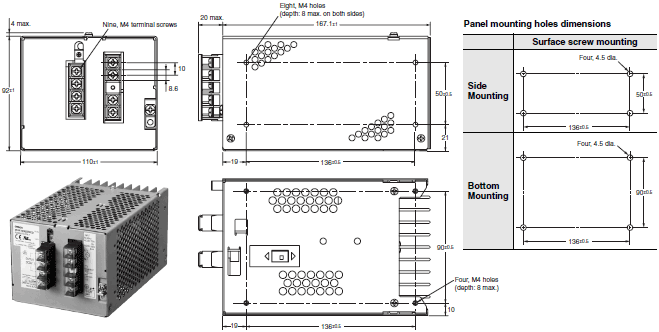

Front-mounting Method
Temporarily attach the enclosed mounting bracket as shown in the illustration on the right, hook the holes (parts a) in the Power Supply on hooks on the mounting bracket (parts b), and secure the Power Supply with two mounting screws.
Note:Mounting screws are not provided.

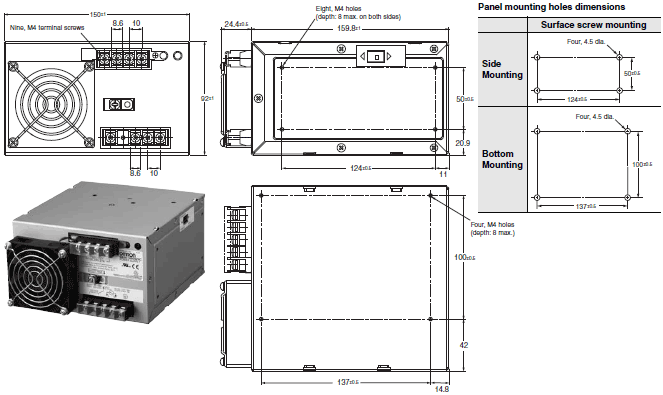

300-/600-W Models
Front-mounting Bracket
Note:Mounting Brackets are provided in a set, one for the right side and one for the left side.
DIN Rail-mounting Models
S8JX-G015[][] (15 W)
S8JX-G015[][]CD (15 W)
S8JX-G035[][] (35 W)
S8JX-G035[][]CD (35 W)
![S8JX-G015[][]](img/1989_dm_10.gif)
S8JX-G050[][]D (50 W)
S8JX-G050[][]CD (50 W)
![S8JX-G050[][]D_Dim](img/1989_dm_11.gif)
S8JX-G100[][]D (100 W)
S8JX-G100[][]CD (100 W)
S8JX-G15024D (150 W)
S8JX-G15024CD (150 W)
![S8JX-G100[][]D_Dim](img/1989_dm_12.gif)
S8JX-G30024CD (300 W)
DIN Rail (Order Separately)
Mounting Rail
(Material: Aluminum)
*Value in parentheses are for PFP-50N.
Mounting Rail
(Material: Aluminum)
End Plate
Note:
1.If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from aluminum abrasion.
2.If the Unit may be subjected to sliding to either side, attach an End Plate (model PFP-M) on each side of the Unit.
Caution: All units are in millimeters unless otherwise indicated.
