SitemapProximity Sensor with All-stainless Housing
E2FM
Data Sheet (1283KB)
Quick links to 'E2FM' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
One-piece completely stainless-steel housing with a face thickness of 0.8 mm
The face thickness is approximately 4 times that of previous models (E2ES) to enable sensing in even more severe conditions than ever.

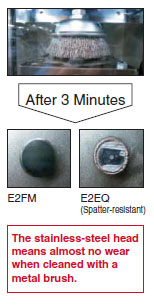

Brush Test
Continuous Impact Test
Chemical and Detergent Proof
The one-piece completely stainless-steel housing of the sensing section withstands the following chemicals better.
Sodium chloride
Gasoline
Dilute sodium hydroxide
Dilute hydrochloric acid
Mineral oil
Barium hydroxide
Any many others
Note:Cannot be used for explosion-proof applications.
Built-in Chip Immunity
Chip immunity performance has been provided to greatly reduce false signals caused by spatter accumulation and other causes, almost eliminating the needs for cleaning, e.g., with metal brushes.

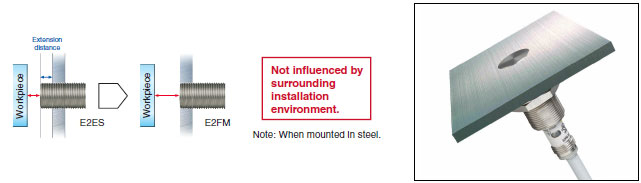

Flush Mounting

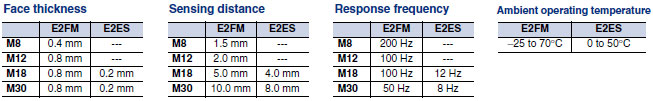

Main Performance Comparison to Previous OMRON Products

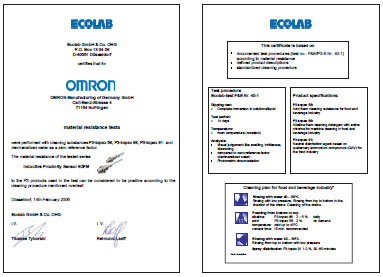

The chemical resistance has been certified by Ecolab Europe
