FA Integrated Tool Package CX-One Version 4.0: Better Than Ever
Operation has been made as easy and intuitive as possible to reduce the work involved in programming.

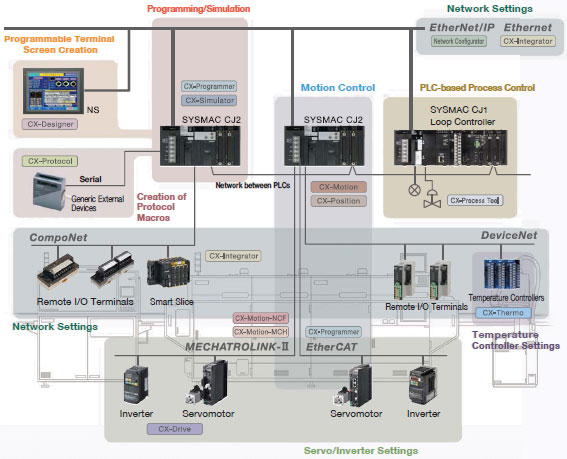

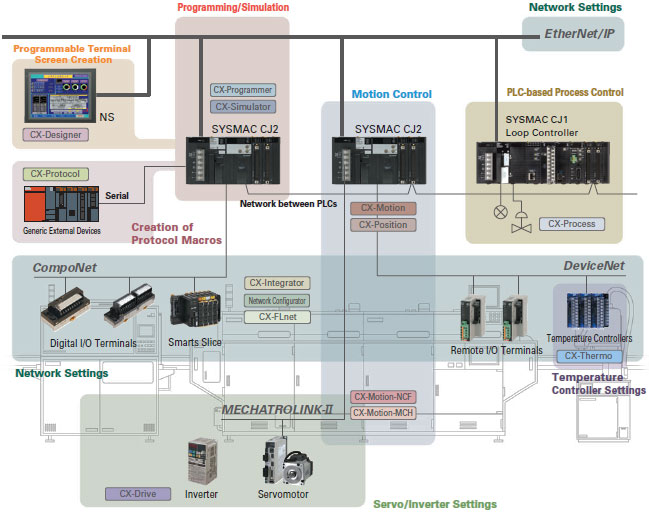

The CX-One is an integrated package of Support Software centered around PLC programming applications and including setup applications for networks, PTs, Servo Drives, Inverters, and Temperature Controllers.
(New Feature 1)
A Smart Input Function greatly reduces the work required to input programs
Smart Input
A complete range of intuitive programming functions is provided, including instruction and address input assistance, address incrementing, and address Incremental Copy.
These functions enable waste-free programming with minimal effort.
(New Feature 2)
Easier Preliminary Verification of Position Control Units
Memory Operation Preview
Preliminary Verification of Position Control Units
The memory operation data created on the CX-Programmer for CJ1W-NC[][]4 Position Control Units can be used to display graphs and motion paths for the position or speed operations of each axis. This enables smoother startup and reduces the work required for preliminary system verification.
*This function will be supported for EtherCAT-compatible Position Control Unit in the near future.
Preliminary Verification for Position Control Units
(New Feature 3)
Easier Setting of Tag Data Links for EtherNet/IP

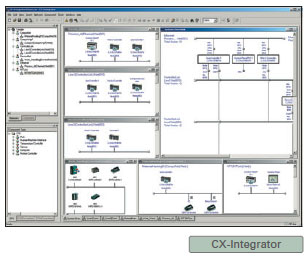

Just drag and drop on the network configuration display of the Network Configurator to create tag data links for EtherNet/IP networks.
(New Feature 4)
Easily Reuse Legacy Programs
Data Structures
In addition to arrays, which can be used to manage data with the same data type, data structures can be used to manage data with different data types in the same structure. And the data structures are managed using names and data types rather than I/O memory addresses. Using data structures enables building legacy programs for data processing that can be easily reused.
Timer and Counter Data Types
Timer and counter data types can now be treated as symbols.
You can thus use them as symbols in arrays to build legacy programs that can be easily reused.
(Support for More Hardware Products)
Support for the SYSMAC CJ2M (COMING SOON)
The following Units are also be supported.
CP1E-NA20 CPU Units (20 points)
Compact NV-series NV4W PTs
CJ1W-AD042/DA042V Analog I/O Units (high-speed models with direct conversion)
CJ1W-SCU22/SCU32/SCU42 Serial Communications Units (high-speed models)
The following Units will be supported in the near future.
CP1E-E10/E14/N14/N60 (10/14/14/60 points) (COMING SOON)
CJ1W-NC281/NC481/NC881 EtherCAT-compatible Position Control Units (COMING SOON)
CX-One Tools
Windows is a registered trademark of the Microsoft Corporation. DeviceNet, DeviceNet Safety, CompoNet, and EtherNet/IP are registered trademarks of the ODVA.
MECHATROLINK-II is a registered trademark of the MECHATROLINK Members Association.Other company names and product names are the trademarks or registered trademarks of the respective companies. EtherCAT is a registered trademark of the EtherCAT Technology Group.
(NEW)
Input without Wasted Effort!
Use Mnemonics to Input Instructions Directly or Use 1-key Inputs
A Smart Input Function greatly reduces the work required to input programs
(Applicable Models : CS/CJ/CJ2/CP Sereis)
A new method is now available that lets you input instructions directly using mnemonics.
Other functions include automatic addresses for operands, including input bits and output bits, automatic insertion of connecting lines for output and application instructions, and other smart input functions that greatly reduce the work required to input ladder diagrams.
Instruction and Address Input Assistance

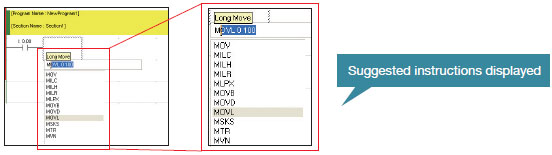

When you begin typing an instruction from the keyboard while in the Ladder Editor Window, suggested instructions are displayed.
All you have to do is select the instruction from the list for easy input even if you do not remember the entire mnemonic.
Automatic Insertion of Connecting Lines

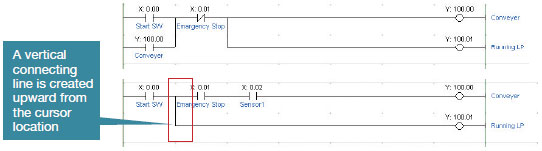

When an output or application instruction is input, the required connecting line is inserted automatically starting at the cursor location.
This greatly simplifies the work required to insert lines.
Address Incremental Copy
To create the same group of ladder instructions more than once, the address incremental copy function can be used to reuse the instructions simply by inputting an address offset.Also, address offsets can be set individually and I/O comments can be created automatically.

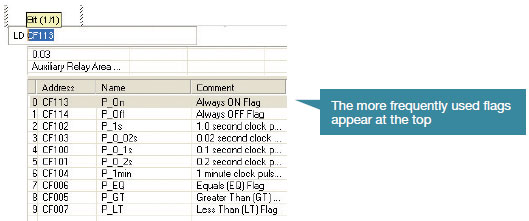

Auxiliary Bit Input from Lists
Clock Pulse Flags, Condition Flags, and other special bits in the Auxiliary can be selected from lists, eliminating the need to remember addresses.
Address Incrementing

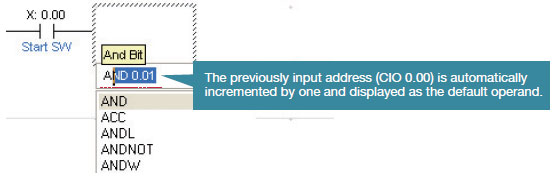

The address of the next operand, including input bits and output bits, is incremented by one and displayed as the default.
This enables easily inputting consecutive addresses.

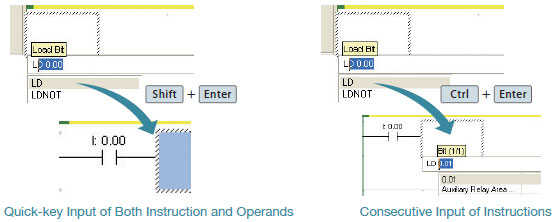

Quick-key Input of Both Instruction and Operands, and Consecutive Input of Instructions
When an instruction is displayed with a default operand, just press the Shift + Enter Keys to confirm input of both the instruction and operand.
To input the same instruction consecutively, just press the Ctrl + Enter Keys.
We've eliminated the number of steps for key operations wherever possible.
Comprehensive Programming Environment with 1-key Operation and Flexible Multilingual Support
In addition to practical functions such as 1-key operation that improves the programming efficiency, processing is conducted in the optimal language.
Flexible multilingual support and the Smart Libraries enable a comprehensive programming environment.

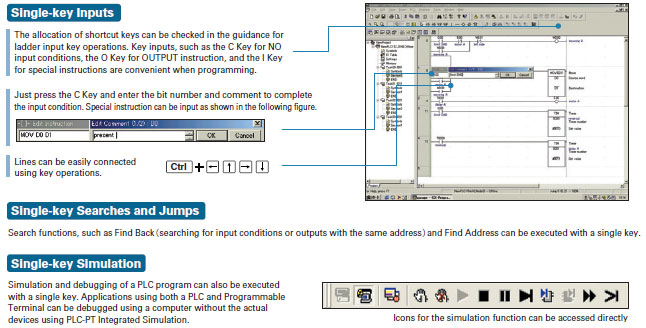

Improved Programming Efficiency with 1-key Operation

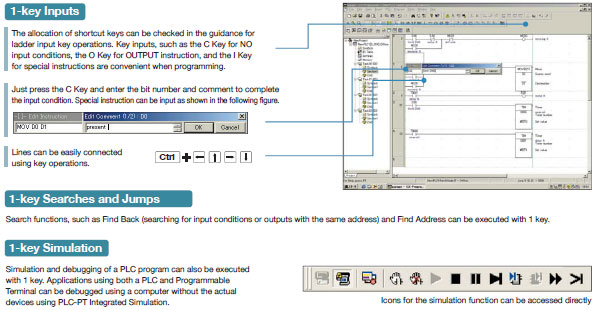

The CX-Programmer features the "1-key Concept" to increase operability. Apart from inputs to ladder diagrams, history searches, and model jumps, 1-key operation can be used for simulation debugging as well.
Excellent Operability Makes Programming and Debugging Easy
Multiple Languages Can Be Combined To Make Programming Flexible

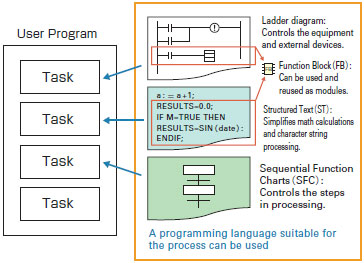

The multilingual feature supports IEC 61131-3. Programming is possible in a language that is appropriate for the process by combining ladder diagram and ST languages. Function blocks can be created to make programming even more efficient.
Smart Libraries (Smart FB Library, SAP)
Ladder diagrams, communications programs, and control screens can be created simply by selecting and pasting program modules from the extensive libraries.
Using FB and SAP modules to build the programs, it is possible to create programs that are easier to understand.
(NEW)
Data Structures, Timer Data Type, and Counter Data Type
Support for data structures, a timer data type, and a counter data type makes reusing program designs much easier
(Applicable Models : CJ2)

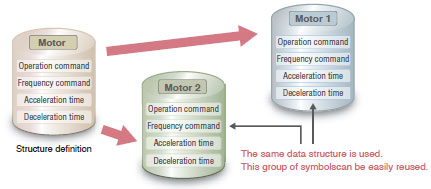

Data Structures

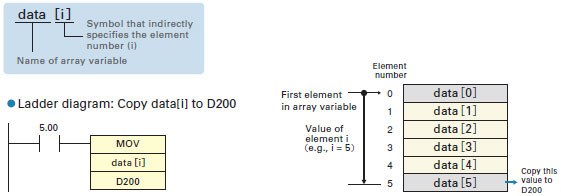

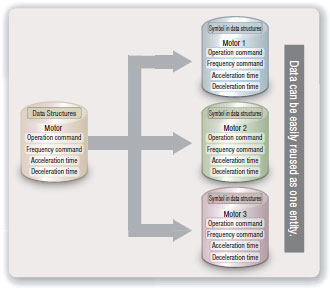

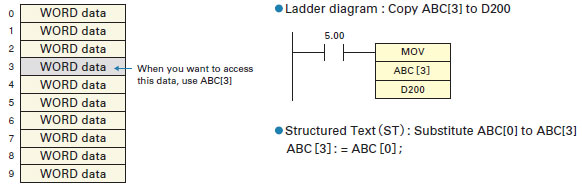

In addition to arrays, which can be used to manage data with the same data type, data structures can be used to manage data with different data types in the same structure. And the data structures are managed using names and data types rather than I/O memory addresses.

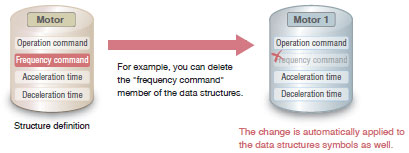

Using data structures enables building legacy programs for data processing that can be easily reused.
When handling a large amount of data with the same structure, such as the processing results for production lots, data structures can be used to simplify data management.

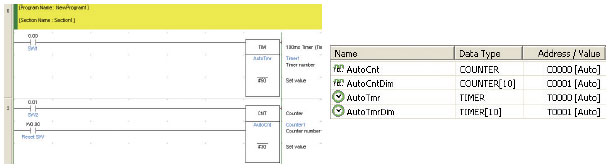

Timer and Counter Data Types
Timer and counter data types can now be treated as symbols.

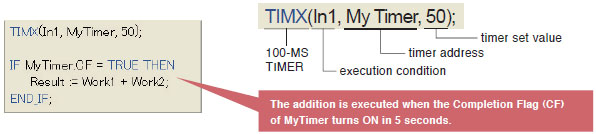

You can thus use them as symbols in arrays to build legacy programs that can be easily reused.
Define timer and counter data types as symbols to enable easily reusing programs that contain timers and counters.
(NEW)

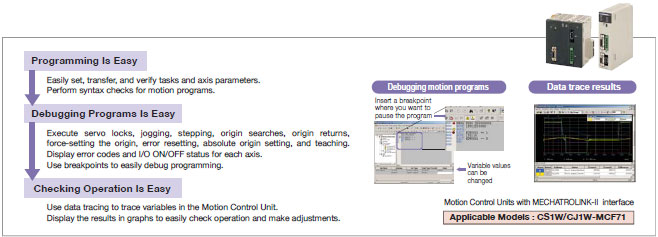

Improved Functionality for Position Control
Preliminary Verification of Memory Operation for Position Control
(Applicable Models: CJ1W-NC214/234/414/434)
*This function will be supported for EtherCAT-compatible Position Control Unit in the near future

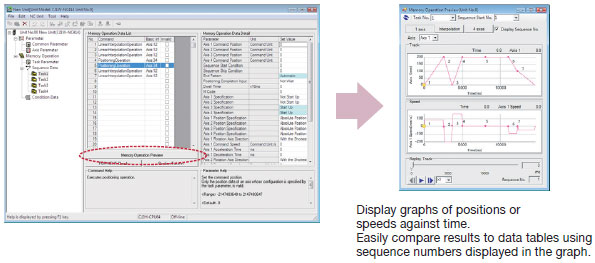

Use Memory Operation Previews for Smoother Startup
Verifying operation before transferring the memory operation data to the Unit enables smoother startup and reduces the work involved in system verification.

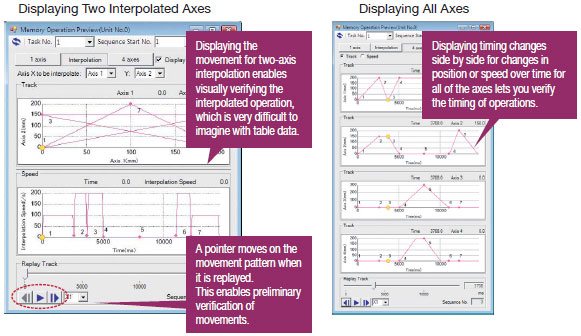

Display Axis Movement Patterns for Two Interpolated Axes or for All Axes
You can verify movements by axis for each task. (Up to four axes can be displayed for each task.) Just click to switch the frame of reference for confirming operating patterns between one/two-axis interpolation, all axes, and pulse output instructions.
(NEW) (COMING SOON)
Position Control Unit and Communications Setup Integrated into the CX-Programmer
Easily Achieve Position Control without Wading Through User Manuals
(Applicable Models: CJ1W-NC[]81)

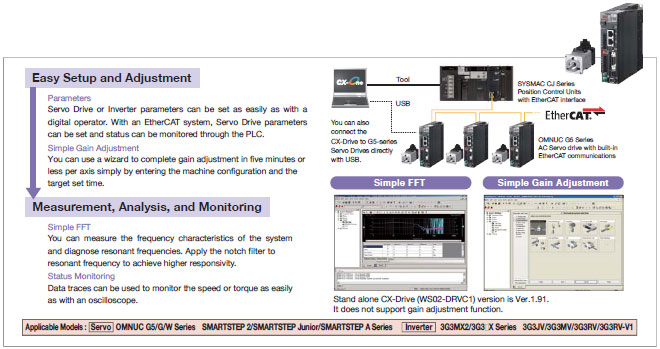

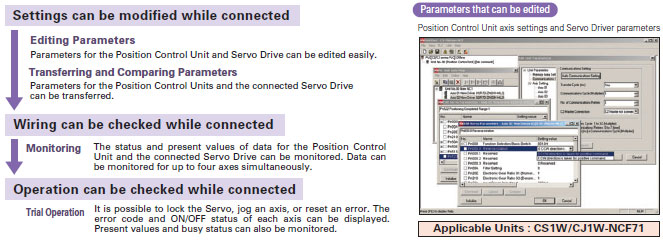

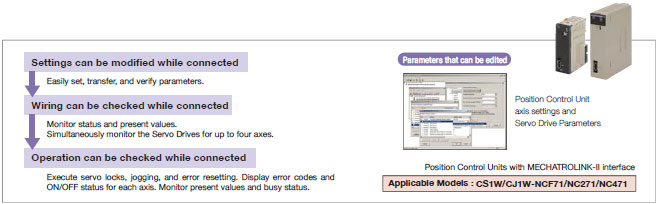

Setup the Position Control Units and Servo Drives from One Connection

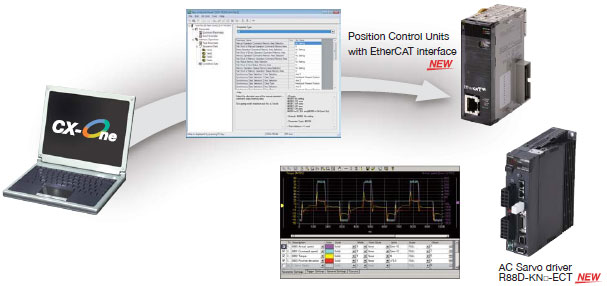

Just connect the computer to a CPU Unit port to set up the EtherCAT-compatible Position Control Units and EtherCAT communications.
You can also directly start the CX-Drive Support Software to set the Servo Drives connected to the Position Control Units.

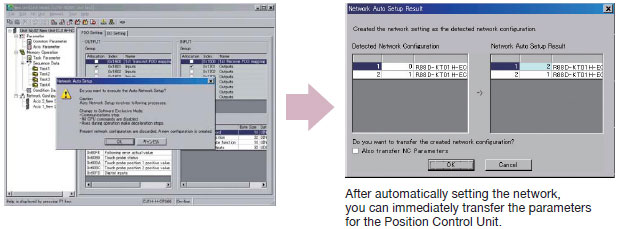

Automatic Network Setup
The communications parameters for EtherCAT-compatible Position Control Units can be set simply by selecting a menu command.
(NEW)
USB and EtherNet/IP Ports are Standard Features for SYSMAC CJ2 CPU Units
Easier Connection to PLCs
(CX-Programmer)
(Applicable Models: CJ2)
Easy connection with USB

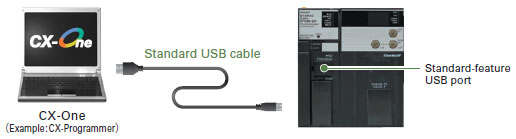

A standard USB cable can be easily connected to the USB port on the front of the CPU Unit.
Easy Connection with EtherNet/IP

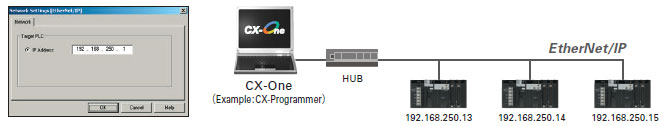

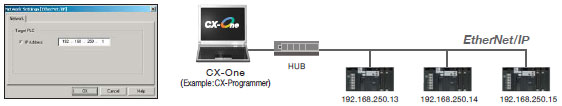

Easy connection by specifying the computer LAN (Ethernet) port and IP address only.
*CJ2(built-in EtherNet/IP) CPU Units only.
Prevent Connection Errors by Verifying PLC Names
The CJ2 CPU Unit can record a PLC name. Errors in transfers can be prevented ahead of time because the PLC name can be compared with what is in the project file when connecting online.

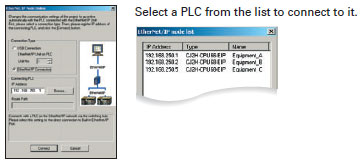

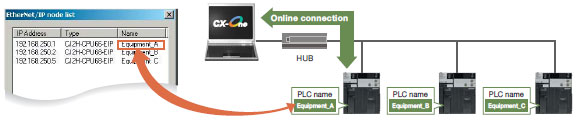

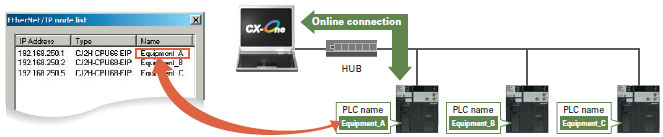

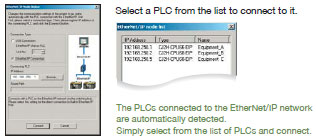

Browse and Connect from the EtherNet/IP Connection List
Even if the IP address is unknown, you can browse a list of PLCs connected to the EtherNet/IP and select one to connect to it. With this, remote debugging and maintenance can be conducted smoothly on site.
*CJ2(built-in EtherNet/IP) CPU Units only.
(NEW)
Integration of Network Construction and Parameter Settings

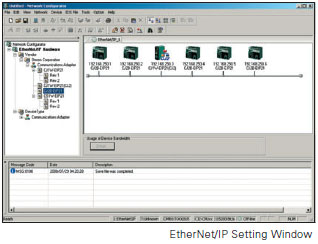

Easy Setting of Tag Data Links for EtherNet/IP

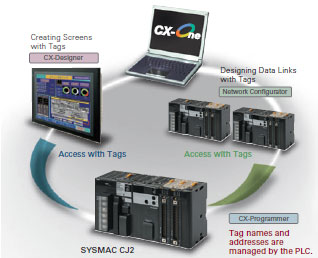

In addition to creating data links with the EtherNet/IP Datalink Tool using I/O memory addresses, you can also use network symbols for tags to easily create the data links.
With EtherNet/IP, high-speed, high-volume data links can be created with different cycle specifications for each applications, regardless of the number of nodes.
*CJ2(built-in EtherNet/IP) CPU Units only.
EtherNet/IP Tag Data Link Setting Wizard

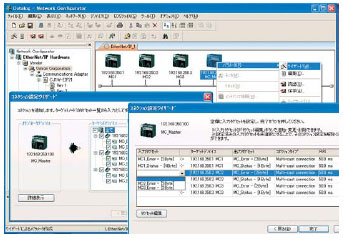

A wizard can be used to easily set the tag data links for Ethernet/IP by importing the network symbols for tags from the CX-Programmer.
(Network Configurator)

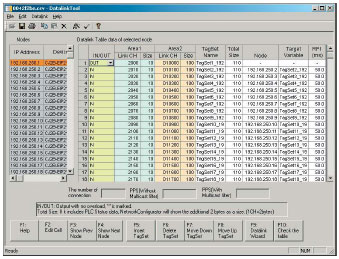

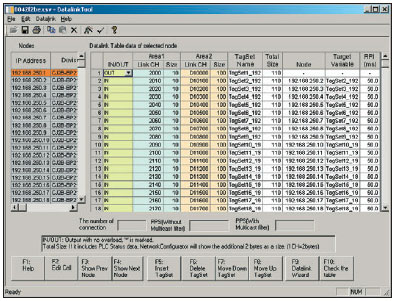

EtherNet/IP Datalink Tool
EtherNet/IP data links can be easily created by setting I/O memory addresses in data link tables.
(Network Configurator)
Comprehensive Debugging for Networks
Time Required for Onsite Startup and Debugging Has Been Significantly Reduced
With CX-One version 3.0, debugging is efficient with simultaneously monitoring and management of multiple networks and PLCs.

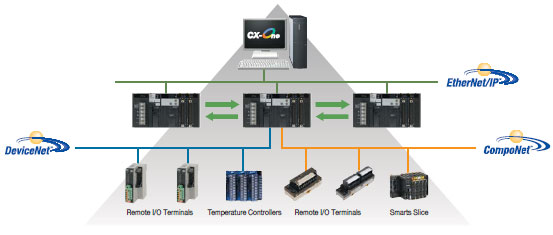

Management of Multiple Networks
The operation of networks with configurations consisting of multiple networks including PLC networks such as EtherNet/IP and Controller Link, field networks such as DeviceNet and CompoNet, and networks for Programmable Terminals and Serial Devices, can be restored simultaneously from the CX-One. Onsite start up and debugging can be conducted efficiently and without errors because PLCs and devices can be selected from the window to transfer programs and parameter data to the computer during operation.

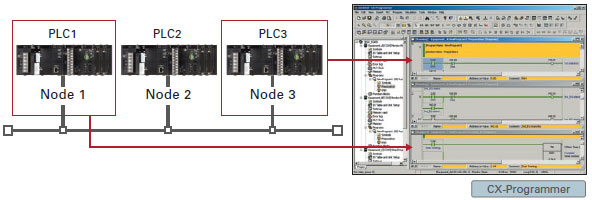

Ladder diagram Monitoring for Multiple PLCs

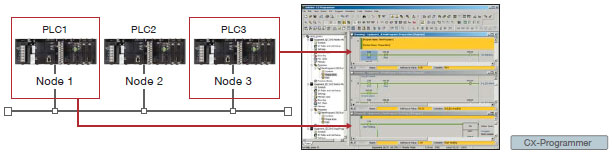

Multiple PLCs can be monitored by displaying them in series on the screen. This way it is easy to debug data links between PLCs and monitor the inputs and outputs of different PLCs.

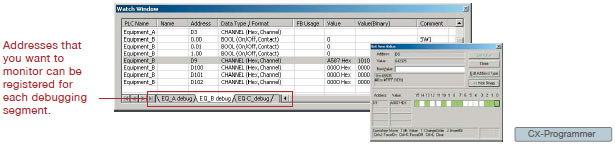

Group Monitoring of Multiple PLC Input/Outputs in the Watch Window
The desired I/O data can be selected for multiple PLCs, such as input bits, output bits, and word I/O data, and monitored simultaneously. There are also functions such as the Binary Monitor and Forced Set/Reset functions that enables graphical monitoring the ON/OFF status of word data. All of these monitoring functions are easy to use.
Time Require for Debugging and Maintenance Has Been Reduced with the Comprehensive Data Trace Function
Functionality and operability has been significantly upgraded compared to the previous data trace function. The new data trace function provides comprehensive debugging, such as I/O comment display of sampled addresses, specification using symbols, checking the measurement time between two selected points, and layering waveforms. Furthermore, data sampled from the CPU Unit's trace memory can be saved to a file on the computer at a specified frequency. This can be used as for long-term logging of data.

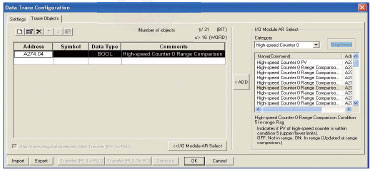

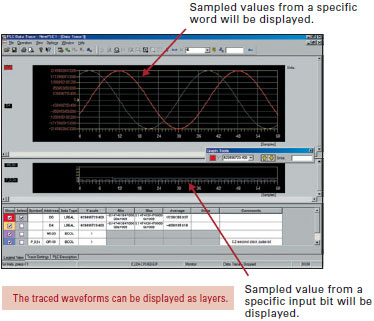

Data Trace Function
Continuous Data Trace Logging
(Applicable Models: CJ2)
Simulation Debugging

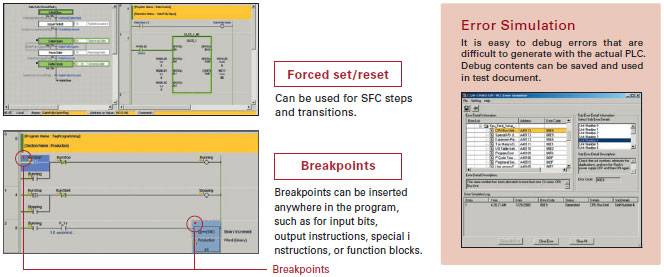

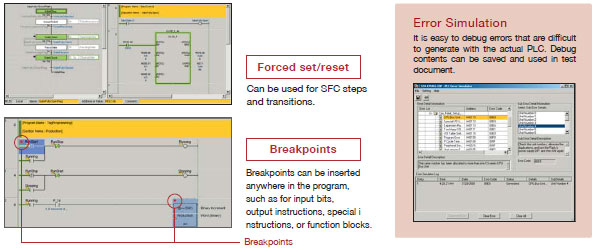

Programs can be debugged using a computer without the actual PLC. A wide range of languages, such as ladder diagram, sequential function charts (SFC), structured text (ST), and programs within function blocks are supported. Furthermore, programs can be edited online, bits can be forceset/reset, breakpoints can be set, and a PLC error simulator can be used.
Simulation of SFC, Ladder Diagrams, and Function Blocks
No Size Restrictions for Online Editing of Function Blocks and Sequential Function Charts
There are no size restrictions for the function blocks and SFC that can be edited online.
(Applicable Models: CJ2)
Products Are Highly Compatible and Easy to Use Because They Are from a Comprehensive PLC Manufacturer
The CX-Designer Simplifies the Processes from Screen Design to Debugging for the NS-series Programmable Terminals
The time required for designing can be significantly reduced because of the compatibility with SYSMAC CJ-series PLCs. The process of designing screens is easier with expanded functionality.
(Applicable Units: NS Series, NSJ Series)

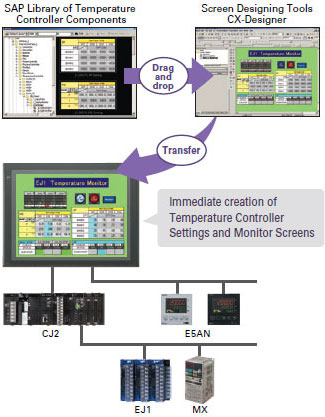

Communications Components and the Smart Active Parts (SAP) Library Significantly Reduces the Time Required to Create Ladder Diagrams and Screens
There are over 3,000 Smart Active Parts that can directly access OMRON PLCs and components. Simply select and paste a part from the SAP library onto the screen. Detailed screens and ladder diagrams do not need to be created.
Using Software Components, Error Checking and Parameter Setting Can Be Done without a Computer
There are many software components in the Software Function SAP Library that can be easily incorporated into the NS-series Programmable Terminals.

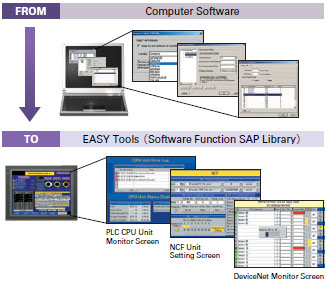

Simply select and paste software components on the screen. Device errors can be checked and parameters set without a computer.

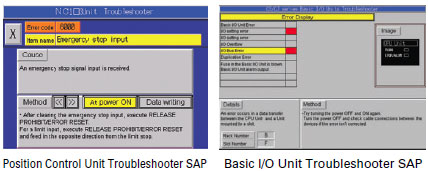

The Troubleshooter SAPs Can Be Used Onsite without Computers or Manuals
There is a troubleshooter SAP library that covers all PLC Units. If there is a PLC error, the troubleshooter SAP library explains the cause and how to implement countermeasures in a way that it is easy to understand.

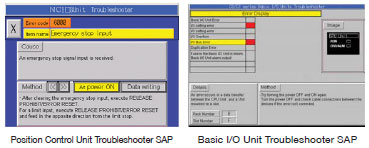

Improved Troubleshooter SAP Library
In addition to the DeviceNet Units and Position Control Units, the CX-Designer also includes Basic I/O Unit, Analog I/O Units, Serial Communications Units, High-speed Counter Units, Controller Link Unit, and ID Sensor Units. Including the EtherNet Units and Motion Control Units is planned in future development stages.
Integrated Simulation with the PLC Ladder Diagrams

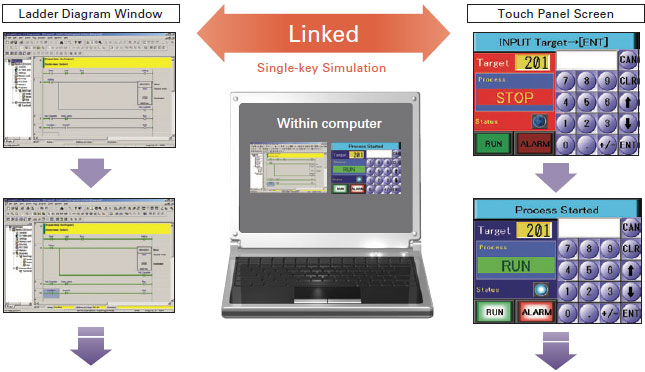

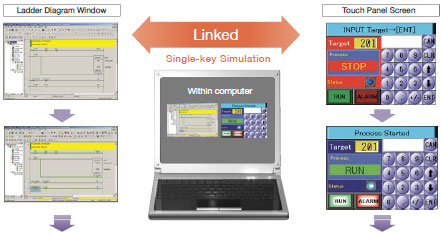

Test functions for the CX-Designer and CX-Programmer are linked through the CX-Simulator on a computer. This enables screens and ladder diagrams to be checked simultaneously, significantly improving the debugging efficiency. A new Integrated Simulation Button has been added to the CX-Programmer.
Furthermore, work efficiency has been significantly improved with the function that enables work windows to be pinned in front, and a flexible zoom function.
Screens and Ladder Diagrams Can Be Simultaneously Checked on a Computer
The Comprehensive Screen Designing Software Makes for Easy Creation of Multifunction Screens

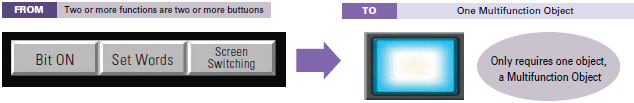

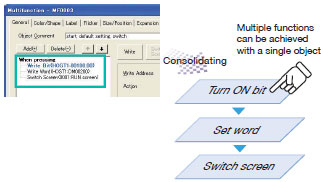

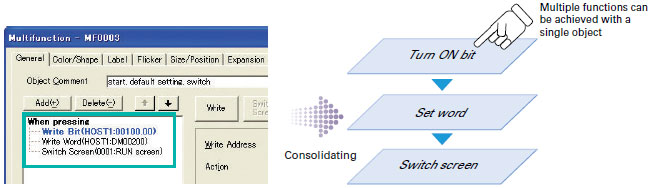

A Multifunction Object is a collection of the functions of various objects. Multiple functions can be operated with a single press of a button without using cumbersome macros. Setting Multifunction Objects is easy. For example, you can visually create a setting like "Change the screen when the device operation start bit turns ON and the value is set" using the software.
Operation of multiple functions can be achieved with a single hit of a button without using macros
Easy and visual software settings

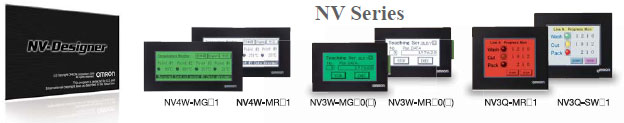

Use the NV-Designer to Easily and Quickly Design Screens for the NV Series of Compact PTs
(Applicable Units: NV Series)

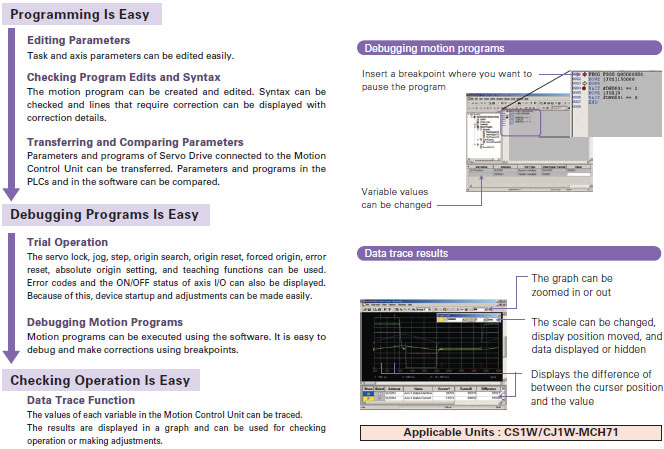

Easy High-level Servomotor Control
The CX-Motion Supports MECHATROLINK-II Servo Systems
Improve productivity of motion network servo systems using MECHATROLINK-II for design, startup, and maintenance.
Easy Management of Parameters While Still Connected to PLCs CX-Motion-NCF

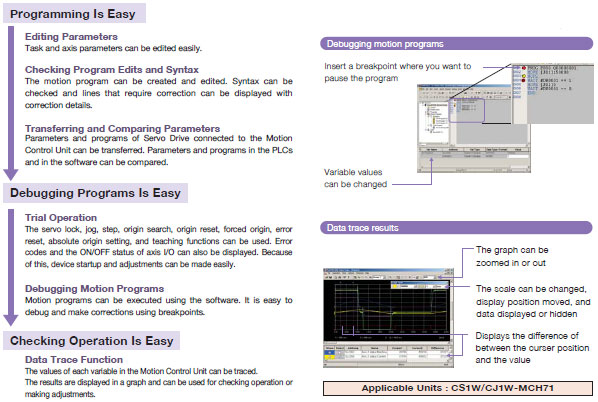

Even Easier to Start Up a System CX-Motion-MCH
From Parameter Settings to Temperature Data Management
The CX-Thermo/CX-Process Tool Software Supports High-level Temperature Control
Setting Temperature Controller Parameters Is Easier CX-Thermo

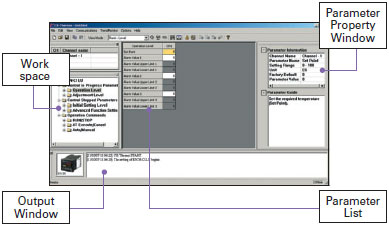

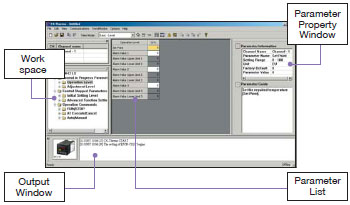

Parameters can be easily set from a list
Easy Parameter Settings
Parameters can be set even for Temperature Controllers that do not support communications.
Parameters can be saved, and then copied, or reused and edited (Parameters can be exported in CSV or HTML format.)
Displays Only What Is Used
To avoid unintentional use of parameters, unused parameters can be masked (i.e., hidden)
Applicable Units:
E5GN/E5CN/E5CN-H/E5AN/E5AN-H/E5EN/E5EN-H,EJ1,E5ZN,E5AR/E5AR-T/E5ER/E5ER-T
*The DeviceNet type is excluded
Programming for the Process Controller Is Easier CX-Process Tool

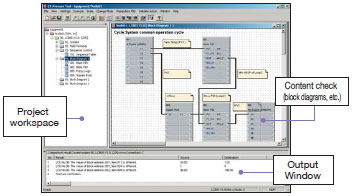

Control Programs Can Be Constructed By Pasting Function Blocks
Control Can Be Customized
Control programs can be constructed by pasting function blocks and connecting them. They can be used for simple PID control, program control, and cascade control.
Easy Creation of an HMI
Screens for the NS-series PTs (NS runtime screen) are automatically generated from the function block programs. Standard control screens and tuning screens do not need to be created manually.
Applicable Units:
CJ1G-CPU4[]P/CPU4[]P-GTC, CS1W-LCB01/LCB05/LCB05-GTC, CS1W-LC001, CS1D-CPU6[]P
CX-Thermo/CX-Process Tool Support Software
Adjusting Parameters While Monitoring Trends
PID parameters can be adjusted while monitoring the present value (PV), setting point (SP), and manipulated variable (MV). Trend data can be saved in CSV format.
(CX-Thermo Trend Viewer, CX-Process Tool Support Software Tuning Screen)
Controlling with a Reliable Control Algorithm (See note.)
The execution of the autotuning (AT) function that calculates the PID constants and the fine tuning (FT) function that improves controllability exactly as required are made easy with an intuitive user interface. The interference overshooting adjustment function is supported to adjust overshooting when interference occurs, and the gradient temperature control function achieves constant internal temperatures for multi-point temperature control with interference.
Note:Supported functions depends on the product being used. Refer to product manuals for details.
Easily write programs to read and write PLC data with VB or VC#.
CX-Compolet
Easy to Use without Any Technical Knowledge
Provides software components that help you easily and quickly develop PLC communications.
Read and write PLC data without the need to consider differences between networks.
Supports Microsoft Visual Studio .NET 2008.
For the CJ2 with EtherNet/IP functionality, I/O memory in the PLC can be accessed by using tag names rather than addresses.
Array variable access is possible.
Communications Middleware to Connect a Computer and SYSMAC PLCs
SYSMAC Gateway
Direct Connection of the Industrial Ethernet: EtherNet/IP
Direct Access to High-speed and High-capacity Networks
In addition to FINS communications, operation of SYSMAC Gateway has been verified on EtherNet/IP.
Absorbs differences in the physical layer between RS-232C, USB, Ethernet, EtherNet/IP, and Controller Link.
Just install the software on the computer to enable data communications for controls and information.
Note:Communications are possible via USB and Ethernet too.
Web Support Services for CX-One
OMRON'S CX-One offers many service options in the Internet environment so that engineers and online support is available from anywhere in the world 24 hours a day.
Online User Registration
When you register online as a user of CX-One, all CX-One software components can be registered at once. The online registration website can be accessed from Japan, North America, South America, Central America, Europe, Africa, Asia, China, Taiwan, and Korea. You can access the Internet services from anywhere once you have registered.
Automatic Update
With the automatic update function of CX-One, the latest update information for your computer environment can be searched for and applied using the network environment. Your CX-One can be constantly updated to the latest state. It is also possible to update only the necessary tools.
Download Services
Control devices that were made available after you purchased the Support Software can be used if you download the latest Smart Libraries from the Internet. A customized library can be made by downloading the Smart FB Library and Smart Active Parts for the hardware that you require. Programming is also easy by selecting and pasting the necessary parts.
