F3SN-A[]SS

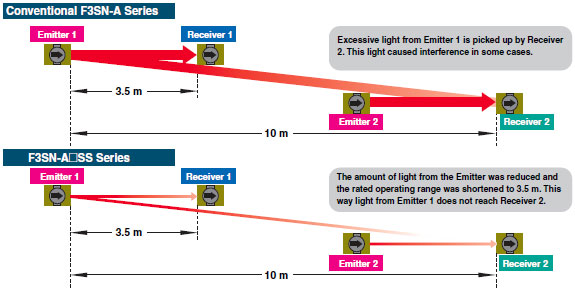

New Emitter Mechanism Eliminates Excessive Light

Removing excessive light is the key to eliminating mutual interference, external light interference, and other similar causes of unwanted line stoppages.

Conventional Models

Conventional models had an operating range that was too long. This meant that they picked up light from sensors in unexpected locations and they interfered with other sensors.

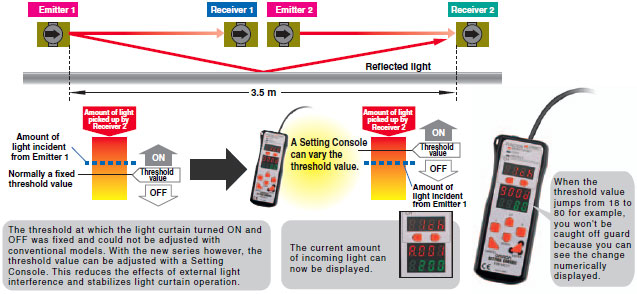

Setting Console Optimizes Light Sensitivity for Specific Ranges

Even Light Reflected from Walls

Ideal Where Installation Space Is Limited

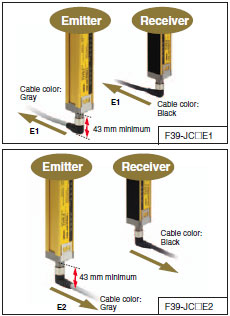

Back-mounted Connector Cable Models and Optional Right-angle Cables

Models with connector cables attached at the back (F3SN-A[]SS-02/04) can be used for installation where space is limited and there is no extra room at the bottom of the Light Curtains. The F3SN-A[]SS-04 also equipped with a connector cable at the top for series connection. When there is no space at the back, traditional Straight Connector Cables or an optional L-shaped Connector Cable (F39-JC[]E[]) that extends from the side of the lens surface are also available.

More Compact Machines

The F3SN-A[]P14 finger protection model is ideal for the more compact machines available today. It has a safe distance that can be as short as 88 mm.
Refer to F3SN-A/ F3SN-B, F3SH-A for details.

Conforms to International Safety Standards

The F3SN-A[]SS is a Type 4 sensor with a category 4 rating. This means that it conforms to the highest standards of safety for a Safety Light Curtain. The F3SN-A[]SS conforms to all the following standards.

Application is also possible in devices covered by the OSHA standards (29 CFR 1910.212) of the USA. The requirements of the USA Industrial Robot Standard ANSI/RIA R15.06-1999 have also been satisfied.
