SitemapSafety Controllers
F3SX
"Safe" "Simple" "Visible" Safety controller with no need for programming
Data Sheet (1602KB)
Quick links to 'F3SX' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
Simple Connection all in one unit.
No unnecessary wiring between Units allows considerable cuts in the cost of evaluating design safety.
Reduced wiring, post terminals, and connector connections enable substantial reductions in the cost of maintenance labor.
Width has been reduced by approximately 50% from 225 mm to 112.5 mm max. (compared to previous OMRON products; connecting F3SN (4 sets), F3SP-B1P, and G9SB-301).
Post terminals aid in preventing unintentional neglect to tighten terminal screws.

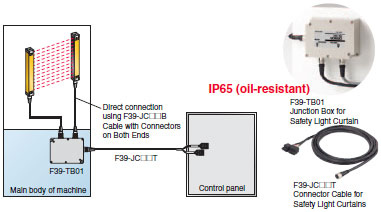

Convenient F39-TB01 Junction Box for Safety Light Curtain.
Using the Connector Cables specially designed for Safety Light Curtains/Multi-beam Safety Sensors and a Junction Box for Safety Light Curtain makes for efficient wiring to a Control Box installed at a distance.

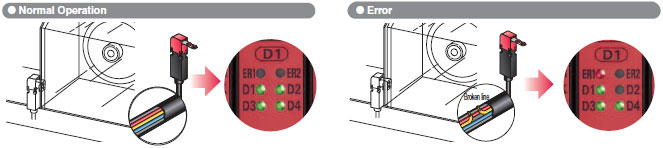

Indicator Displays Are Easy to Understand and More Convenient
The F3SX uses indicators to show the status of each I/O, contributing to less time (downtime) spent investigating the cause.
Note:Refer to Data Sheet for details on indicator patterns.
