A22E

List of Models (Completely Assembled)

Non-lighted Models

Operating			Set Model	Color of cap
Appearance		Contact Configuration
40-dia. head Medium Push-pull A22E-MP		SPST-NC	A22E-MP-01	Red
		SPST-NO/SPST-NC	A22E-MP-11
		DPST-NC	A22E-MP-02
60-dia. head Large Push-pull A22E-LP		SPST-NC	A22E-LP-01
		SPST-NO/SPST-NC	A22E-LP-11
		DPST-NC	A22E-LP-02
30-dia. head Small Push-lock Turn-reset A22E-S		SPST-NC	A22E-S-01 *
		SPST-NO/SPST-NC	A22E-S-11 *
		DPST-NC	A22E-S-02 *
		DPST-NC + SPST-NO	A22E-S12 *
		TPST-NC	A22E-S-03 *
40-dia. head Medium Push-lock Turn-reset A22E-M		SPST-NC	A22E-M-01 *
		SPST-NO/SPST-NC	A22E-M-11 *
		DPST-NC	A22E-M-02 *
		DPST-NC + SPST-NO	A22E-M-12 *
		TPST-NC	A22E-M-03 *
60-dia. head Large Push-lock Turn-reset A22E-L		SPST-NC	A22E-L-01 *
		SPST-NO/SPST-NC	A22E-L-11 *
		DPST-NC	A22E-L-02 *
30-dia. head Small Push-lock Key-reset A22E-SK		SPST-NC	A22E-SK-01
		SPST-NO/SPST-NC	A22E-SK-11
		DPST-NC	A22E-SK-02
40-dia. head Medium Push-lock Key-reset A22E-MK		SPST-NC	A22E-MK-01
		SPST-NO/SPST-NC	A22E-MK-11
		DPST-NC	A22E-MK-02

*Models with Korean S-mark certification.

Note:

1.Yellow cap models are also available (not for emergency stop use). Contact your OMRON representative.

2.The Operation Unit of A22E exept models with EMO/EMS indication is red. (The engraved mark is not white.)

With EMO/EMS Indication (non-lighted)

Operating			Set Model	Color of cap
Appearance		Contact Configuration
40-dia. head Medium Push-lock Turn-reset With EMO Indication		SPST-NC	A22E-M-01-EMO *	Red
		SPST-NO/SPST-NC	A22E-M-11-EMO *
		DPST-NC	A22E-M-02-EMO *
		DPST-NC + SPST-NO	A22E-M-12-EMO *
		TPST-NC	A22E-M-03-EMO *
40-dia. head Medium Push-lock Turn-reset With EMS Indication		SPST-NC	A22E-M-01-EMS *
		SPST-NO/SPST-NC	A22E-M-11-EMS *
		DPST-NC	A22E-M-02-EMS *
		DPST-NC + SPST-NO	A22E-M-12-EMS *
		TPST-NC	A22E-M-03-EMS *

*Models with Korean S-mark certification.

Lighted Models

Appearance	Operating			Push-lock turn-reset system	Color of cap
	Contact configuration	Lighting	Rated voltage	Set Model
40-dia. head Push-lock Turn-reset without Voltage Reduction Unit A22E	SPST-NC	LED	6 VAC/VDC	A22EL-M-6A-01 *	Red
			12 VAC/VDC	A22EL-M-12A-01 *
			24 VAC/VDC	A22EL-M-24A-01 *
	SPST-NO/SPST-NC		6 VAC/VDC	A22EL-M-6A-11 *
			12 VAC/VDC	A22EL-M-12A-11 *
			24 VAC/VDC	A22EL-M-24A-11 *
	DPST-NC		6 VAC/VDC	A22EL-M-6A-02 *
			12 VAC/VDC	A22EL-M-12A-02 *
			24 VAC/VDC	A22EL-M-24A-02 *
40-dia. head Push-lock Turn-reset with Voltage Reduction Unit A22E	SPST-NC		100 VAC	A22EL-M-T1-01
			200 VAC	A22EL-M-T2-01
	SPST-NO/SPST-NC		100 VAC	A22EL-M-T1-11
			200 VAC	A22EL-M-T2-11
	DPST-NC		100 VAC	A22EL-M-T1-02
			200 VAC	A22EL-M-T2-02

*Models with Korean S-mark certification.

Note:The Operation Unit of A22E exept models with EMO/EMS indication is red. (The engraved mark is not white.)

Switch with Integrated Control Box

Appearance	Contact configuration	Model
	SPST-NC	A22E-M-01B *
	SPST-NO/SPST-NC	A22E-M-11B *
	DPST-NC	A22E-M-02B *

*Models with Korean S-mark certification.

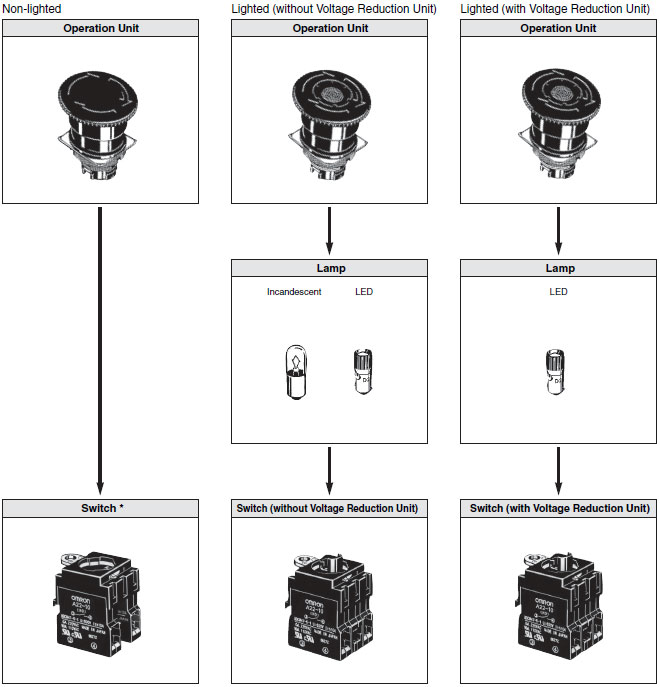

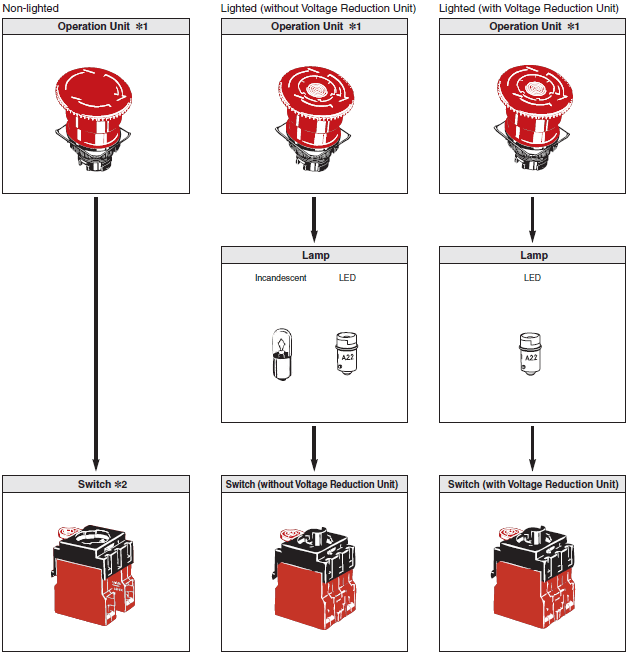

Subassembled

The Operation Unit, Lamp, or Switch can be ordered separately. Use them in combination for models that are not available as assembled Units.
These can also be used as inventory for maintenance parts.

*1.The Operation Unit of A22E exept models with EMO/EMS indication is red. (The engraved mark is not white.)

*2.Up to three Switch Units can be mounted for multiple contacts.

Operation Units

Non-lighted

Sealing capability Size	IP65 oil-resistant models
	Small (30 dia.)	Medium (40 dia.)	Large (60 dia.)
Push-pull	---	A22E-MP	A22E-LP
Push-lock, turn-reset	A22E-S	A22E-M	A22E-L
Push-lock, key-reset (push-lock, turn-reset)	A22E-SK	A22E-MK	---

Lighted

Sealing capability Size	IP65
	Medium (40 dia.)
Push-lock, turn-reset	A22EL-M

Note:The Operation Unit of A22E exept models with EMO/EMS indication is red. (The engraved mark is not white.)

Lamp

LED

Appearance	LED light		Rated voltage	Model
	Red	Standard	6 VAC/VDC	A22-6AR
			12 VAC/VDC	A22-12AR
			24 VAC/VDC	A22-24AR

Note:For voltage-reduction lighting, use the A22-24AR.

Incandescent

Switch (Standard Load)

Without Voltage Reduction Unit

With Voltage Reduction Unit

Classification Appearance		Lighted (110 VAC)	Lighted (220 VAC)
Switch Action		Momentary	Momentary
Contacts		Model	Model
For standard loads	SPST-NC	A22L-01M-T1	A22L-01M-T2
	SPST-NO + SPST-NC	A22L-11M-T1	A22L-11M-T2
	DPST-NC	A22L-02M-T1	A22L-02M-T2

Note:When using with a Voltage Reduction Unit, use the A22-24AR.

Accessories (Order Separately)

Item	Appearance	Classification		Model	Remarks
Switch Blocks		SPST-NO	Standard load	A22-10	Provided as standard. Order Switch Blocks only when adding or replacing them.
			Microload	A22-10S
		SPST-NC	Standard load	A22-01
			Microload	A22-01S
		DPST-NO, one-piece	Standard load	A22-20
			Microload	A22-20S
		DPST-NC, one-piece	Standard load	A22-02
			Microload	A22-02S
Lamp Sockets		Direct lighting		A22-TN	Used when changing the lighting method.
		Voltage- reduction lighting	100 VAC	A22-T1
			200 VAC	A22-T2
Mounting Latches		---		A22-3200	Provided as standard. Order Mounting Latches only when mounting Switch Blocks or Lamp Sockets that are purchased individually.
Legend Plates for Emergency Stop		60-dia. black letters on yellow back-ground		A22Z-3466-1	"EMERGENCY STOP" is indicated on the plate.
		90-dia. black letters on yellow back-ground		A22Z-3476-1
		60-dia. black letters on yellow back-ground		A22Z-3466-2	"EMERGENCY OFF" is indicated on the plate.
Hole Plug		Round		A22Z-3530	Can be plugged into pre-cut panel holes for future expansion. The color is black.
Connectors		Applicable cable diameter	7 to 9 dia.	A22Z-3500-1	Plastic connector used to extend a cable from the Switch Box.
			9 to 11 dia.	A22Z-3500-2
25-dia. Ring		---		A22Z-R25	Can be fit into a 25-dia. hole in the panel. Since this is not attached to the main body, order separately. (Refer to Data Sheet.)
30-dia. Resin Attachment		---		A22Z-A30	Can be fit into a 30-dia. hole in the panel. (Refer to Data Sheet.)
Lock Plate		---		A22Z-3380	Use to fix the lever on the Switch.
Control Boxes (Enclosures)		One hole, yellow box (for emergency stop)		A22Z-B101Y	Material: Polycarbonate resin
Operation Keys		---		A22K-K	Two keys are provided.
Lock Ring		Rounded shape		A22Z-3360	The body is equipped with a Lock Fitting. This Lock Fitting is used when a more secure lock feature is required. (Refer to Data Sheet.)
Lamp Extractor		---		A22Z-3901	Rubber tool used to replace Lamps easily
Tightening Tool		---		A22Z-3905	Tool used to tighten rings from the back of the panel and to attach caps to lighted models.
E-stop Shroud for EMO, Yellow		---		A22Z-EG1	Provides SEMI-S2/SEMATECH Application Guide for SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY OFF come as a set. Use with an A22E Emergency Stop Switch. (for emergency shutoff) *
E-stop Shroud for EMO, Yellow		Legend plate for EMERGENCY OFF is not included.		A22Z-EG10	Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2 compatibility. Use with an A22E with EMO indication. (for emergency off)
E-stop Shroud for EMS, White		---		A22Z-EG1-W	Provides SEMI-S2/SEMATECH Application Guide for SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY STOP come as a set. Use with an A22E Emergency Stop Switch. (for emergency stop) *
E-stop Shroud for EMS, White		Legend plate for EMERGENCY STOP is not included.		A22Z-EG10-W	Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2 compatibility. Use with an A22E with EMS indication. (for emergency stop)
E-stop Shroud, Yellow		---		A22Z-EG2	SEMI-S2/SEMATECH Application Guide for SEMI S2-compatible Shroud. (for emergency shutoff) * Use together with an A22E Emergency Stop Switch.

*These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc).
