SitemapPushbutton Switch (Detachable) (Lighted/Non-Lighted) (Cylindrical 16-dia.)
A16
Data Sheet (3329KB)
Quick links to 'A16' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
The Dimension shows 2-switch outputs.
The lamp terminal is also provided with non-lighted models.
Rectangular
A16[]-J
Solder terminals (tab terminals #110)
![A16[]-J_Dim](img/a16_dm_1.jpg)
Square
A16[]-A
Solder terminals (tab terminals #110)
![A16[]-A_Dim](img/a16_dm_2.jpg)
Round
A16[]-T
Solder terminals (tab terminals #110)
![A16[]-T_Dim](img/a16_dm_3.jpg)
The Dimension shows 2-switch outputs.
The lamp terminal is also provided with non-lighted models.
A rectangular model is listed as an example.
Rectangular
A16[]-J[]-[]P
PCB terminals
![A16[]-J[]-[]P_Dim](img/a16_dm_4.jpg)
Rectangular
A16[]-J[]-T1
Voltage-reduction lighting, solder terminals (tab terminals #110)
![A16[]-J[]-T1_Dim](img/1101_dm_5.gif)
Rectangular
A16[]-J[]-2S, T1-2S, T2-2S
Screw-less Clamp
![A16[]-J[]-2S_Dim](img/1101_dm_6.gif)
Lamps
LED
A16-5D[]/-12D[]/-24D[]
![A16-5D[]_Dim](img/a16_dm_7.jpg)
*The voltage display surface is the same color as the illumination color. The opposite surface is light gray.
(For pure white, the entire surface is light gray.)
Incandescent Lamp
A16-5/-12/-24
Accessories, Tools, and Components
Extractor
A3PJ-5080
Legend Plates
A16ZJ-520[]
![A16ZJ-520[]_Dim](img/a16_dm_10.jpg)
A16ZT-520[]
![A16ZT-520[]_Dim](img/a16_dm_12.jpg)
A16ZA-520[]
![A16ZA-520[]_Dim](img/a16_dm_11.jpg)
Note:
1. The panel is 0.6 mm thick.
2. The panel is made of the materials listed in the following table.
Screw Fitting
A16Z-3004
Panel Plugs (Black Resin)
Select the Plug that fits the panel design and mount from the front of the Panel. Panel cutouts are the same as those for Switches.
Protective structure: IP40
Color: Black
Lock Ring
Socket Unit Lamp Extractor
A16Z-5080

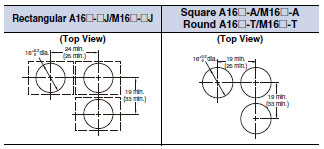

Panel Cutouts
Solder Terminals and Screw-less Clamp Connectors
Note:
Make sure the thickness of the mounting panel is between 0.5 and 3.2 mm. If, however, a Switch Guard or Dust Cover is used, the thickness of the mounting panel must be between 0.5 and 2 mm.
If the panel is to be finished with coating, etc., make sure that the panel meets the specified dimensions after coating.
Figures in parentheses are for Screw-less Clamp Connectors.
PCB Terminals
Note:
Ensure that the variation in the distance between the centers of neighboring mounting holes is less than ±0.1 mm.
Make sure the thickness of the mounting panel is between 0.5 and 3.2 mm. If, however, a Switch Guard or Dust Cover is used, the thickness of the mounting panel must be between 0.5 and 2 mm.
If the panel is to be finished with coating, etc., make sure that the panel meets the specified dimensions after coating.
Accessory Dimensions Mounted
Dimensions with Switch Guard Installed
Rectangular

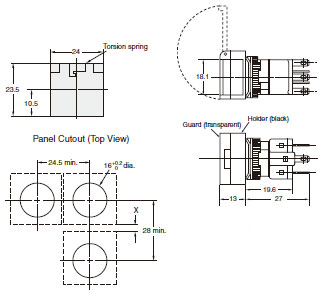

A16ZJ-5050
Note: This example is for when X is 4.5 mm.
If X is not required, the Switches can be mounted with a minimum vertical installation pitch of 24 mm min.
Square

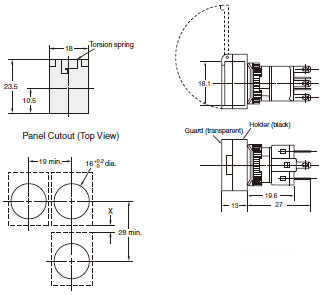

A16ZA-5050
Note: This example is for when X is 4.5 mm.
If X is not required, the Switches can be mounted with a minimum vertical installation pitch of 24 mm min.
If PCB terminals are used, provide X must be 24 mm or larger.
Dust Covers
Rectangular

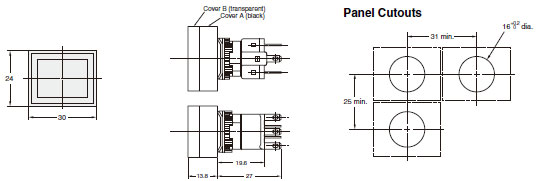

A16ZJ-5060
Square

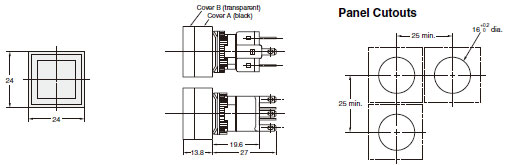

A16ZA-5060
Round

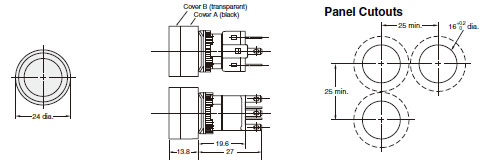

A16ZT-5060
Caution: All units are in millimeters unless otherwise indicated.
