This application displays, judges, and controls the thickness of decorative laminate.

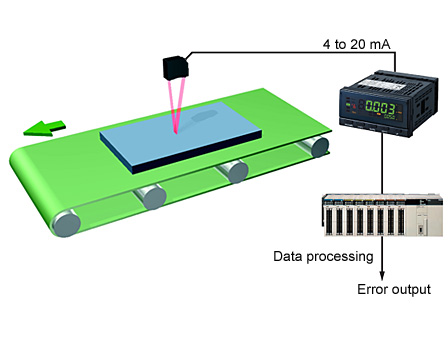

A Displacement Sensor detects the thickness of decorative laminate. A Digital Panel Indicator with high-speed response converts and displays the values for judgment. Also, the system transfers BCD data to the PLC to perform control.
Know-How
The system uses a high-speed Digital Panel Indicator that supports fast sampling at 2,000 times per second (0.5 ms).
Benefit / Efficiency
You can see the thickness of decorative laminate at a glance to perform control.
Application No.318
Applicable Product
Linear Sensor Indicator
K3HB-S
Linear Sensor Indicator for High-speed, Highprecision Measurement and Discrimination
