Measurement of Rotation and Circumferential Speed Error between Two Conveyors

This application detects the rotation speeds of two conveyors to measure the error.

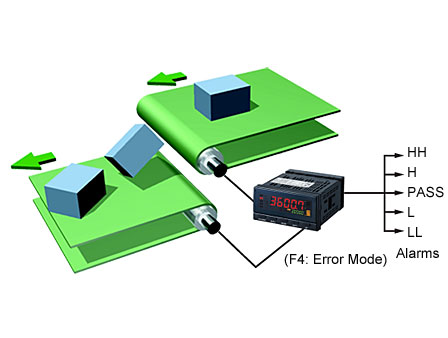

A Rotary Encoder detects the rotation speeds of two conveyors. In error ratio mode, the K3HB-R Rotary Pulse Indicator converts and displays the values for monitoring.

Know-How

The system uses the error ratio mode of a K3HB-R Rotary Pulse Indicator, which can perform high-speed measurement at 50 kHz.

Benefit / Efficiency

You can monitor the rotation and circumferential error ratio between two rollers.

Application No.310

Inquiry for this application case

Applicable Product

Rotary Pulse Indicator
K3HB-R

Digital Rotary Pulse Meter Capable of 50 kHz Measurements
