Detects Seating of Transparent LCD Substrates

This application uses a thin Convergent-reflective Fiber Sensor with a long-distance detection.

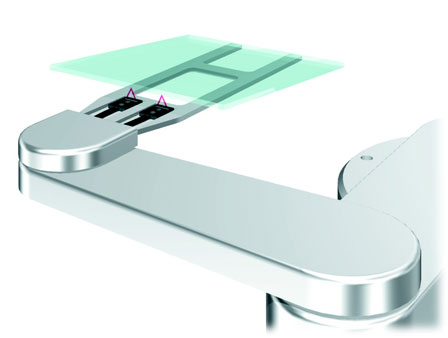

The two fiber heads embedded into the robot hand　and a single amplifier achieve stable detection of the seating of transparent LCD substrates.

Know-How

Thin convergent-reflective fiber sensors with long-distance detection were not available for intelligent application of sensors.

Benefit / Efficiency

You can place this Thin Flat Sensor in essentially any limited space.
This Convergent-reflective Fiber Sensor enables stable detection of transparent LCD substrates.

Applied Models
E32-L16-N + E3X-MDA

Application No.2

Inquiry for this application case

Applicable Product

Fiber Sensors
E32 Series

OMRON's Fiber Sensors continue to support an increasing range of applications.
