Counts Pins with a Pin Pitch of 0.5 mm

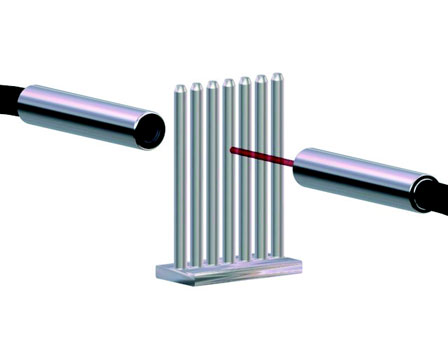

This application uses a Thin-beam Fiber Sensor.

You can achieve a stable pin detection with this Thin-beam Fiber Sensor. The small built-in lens generates a thin beam.

Know-How

It was not possible to count pins correctly with the diffused reflection caused by wide beams.

Benefit / Efficiency

You can count finely pitched pins accurately and stably with a thin beam.

Applied Models
E32-T22S + E3X-DA-S

Application No.109

Inquiry for this application case

Applicable Product

Fiber Sensors
E32 Series

OMRON's Fiber Sensors continue to support an increasing range of applications.
